UV LED: Ultraviolet LED's have lot of applications from PCB exposing to air and water Purification to Indoor Gardening to sterilization of clothes and many other application.

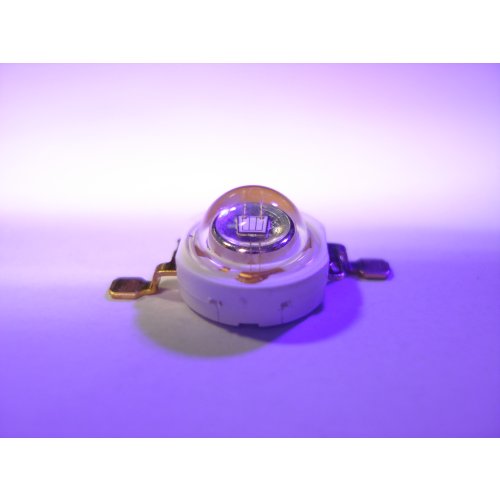

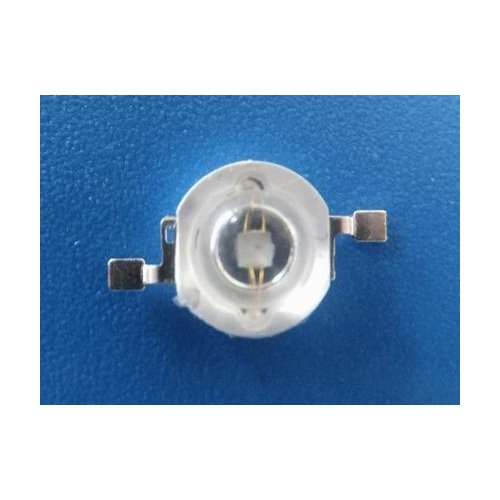

This is a High Power 1 Watt UV LED perfect for integrating it into your product. Light-emitting diodes (LEDs) can be manufactured to emit radiation in the ultraviolet range, although practical LED arrays are very limited below 365 nm. LED efficiency at 365 nm is about 5–8%, whereas efficiency at 395 nm is closer to 20%, and power outputs at these longer UV wavelengths are also better. Such LED arrays are beginning to be used for UV curing applications, and are already successful in digital print applications and inert UV curing environments. Power densities approaching 3 W/cm2 (30 kW/m2) are now possible, and this, coupled with recent developments by photo initiator and resin formulators, makes the expansion of LED-cured UV materials likely. UV LED's are also used for sterilization, and as UVC sources to replace deuterium lamps in HPLC devices.
Long life & low luminous decay
PB free & ROHS compliant
Great consistency
High reliability, no color difference
7.5mm low power LED,1W.
Emitted Color: Ultra Violet UV
Wavelength: 395nm ~ 400nm
Viewing Angle: 115 degrees ~ 125 degrees
DC Forward Voltage (VF): 3.2V ~ 3.8V
DC Forward Current (IF): 350mA ~ 400mA
Luminous Intensity: 60mW ~ 80mW
Curing
Sterilization
Money detector
Solidification
