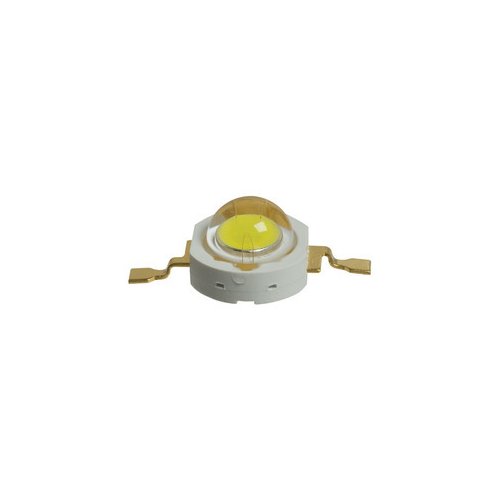

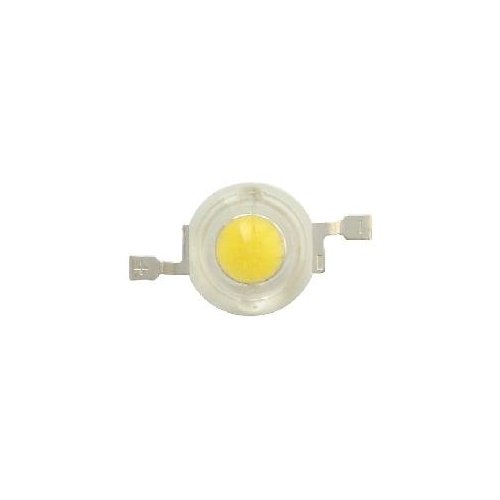

1Watt 3-3.5 Volts LED Emitters which emits 280Lumens @400mA, Cool White 4750-7000K CCT (Color Corelation Temperature).
Power LEDs 1Watt is an excellent high power LED Emitter used for solid sate light applications. This LED emitter with silicon lens technology provides the good life and can be reflow soldered at 260°C. The light output decay less than 10% at severe stress conditions (400mA, 85°C ,85%RH) proves high reliability. Due to Phosphor technology the White and Warm white show good color stability (less than 50K shift with Tj at 100oC) Due to special lens design user gets uniform light with any secondary optics.
Long life & low luminous decay
PB free & ROHS compliant
Great consistency
High reliability, no color difference
7.5mm low power LED,1W.
Emitted Color : White
Viewing Angle : 115 degrees ~ 125 degrees
DC Forward Voltage (VF) : 3.2V ~ 3.8V
DC Forward Current (IF) : 350mA ~ 400mA
Luminous Intensity : 80mW ~ 90mW
See 1 Ratings & Reviews |
1Watt 3-3.5 Volts LED Emitters which emits 280Lumens @400mA, Cool White 4750-7000K CCT (Color Corelation Temperature).
Power LEDs 1Watt is an excellent high power LED Emitter used for solid sate light applications. This LED emitter with silicon lens technology provides the good life and can be reflow soldered at 260°C. The light output decay less than 10% at severe stress conditions (400mA, 85°C ,85%RH) proves high reliability. Due to Phosphor technology the White and Warm white show good color stability (less than 50K shift with Tj at 100oC) Due to special lens design user gets uniform light with any secondary optics.
Long life & low luminous decay
PB free & ROHS compliant
Great consistency
High reliability, no color difference
7.5mm low power LED,1W.
Emitted Color : White
Viewing Angle : 115 degrees ~ 125 degrees
DC Forward Voltage (VF) : 3.2V ~ 3.8V
DC Forward Current (IF) : 350mA ~ 400mA
Luminous Intensity : 80mW ~ 90mW
