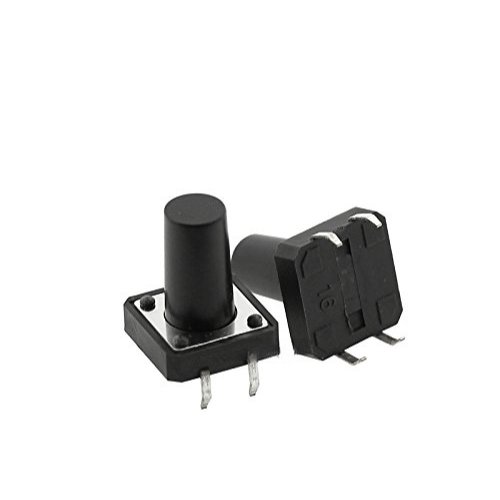

12X12X15mm Tactile Switch

TH12X12X15mm Tactile Switch with 15mm actuator height, 100,000 cycles, and through-hole mounting for stability.

The 12X12X15mm Tactile Switch is designed for reliable user input in various electronic devices. With a size of 12 mm × 12 mm and a 15 mm actuator height, it provides excellent tactile feedback and durability. This switch is ideal for applications in consumer electronics, industrial control panels, and automotive dash controls, ensuring dependable performance under diverse conditions. Its through-hole design allows for secure mounting on PCBs, making it suitable for both manual and wave soldering processes.

Engineered for longevity, the 12X12X15mm Tactile Switch boasts a lifespan of 100,000 to 1,000,000 cycles, ensuring consistent operation. Rated for 50 mA at 12 VDC, it features a contact resistance of ≤ 100 mΩ and an operating force of 130–250 gf. The switch is available in various actuator colors and shapes, catering to different design needs.

Choose the 12X12X15mm Tactile Switch for your next electronic project to achieve high-quality user interaction. Its robust construction and reliable specifications make it a preferred choice for manufacturers and hobbyists alike.

Explore the best in the Switches & Keypad category with DNA. The DNA 12X12X15mm Tactile Switch offers dependable performance for various applications. Don't forget to check other products in this category. Check other "Switches & Keypad" that we have in stock.

If you need additional electronic components, DNA is here to help. We can import parts not available in India and support both retail and bulk orders. Consider exploring our options for LCD, Nextion Display, Inductor, MOSFET, Hongfa Relay, or Programmer. Contact Us

Features of 2X12X15mm Tactile Switch

• Standard 12×12 mm body
• 15 mm actuator height
• Long-life operation of 100,000 to 1,000,000 cycles
• Through-hole mounting
• Crisp tactile feel with audible click
• Rated for 50 mA at 12 VDC
• High heat resistance for soldering processes

Specification of 12X12X15mm Tactile Switch

• Body Size: 12 mm × 12 mm
• Actuator Height: 15 mm
• Mounting Type: Through-Hole (TH)
• Contact Rating: 50 mA, 12 VDC
• Contact Resistance: ≤ 100 mΩ
• Operating Force: 130–250 gf

Applications of 12X12X15mm Tactile Switch

• Consumer electronics
• Industrial control panels
• Medical devices
• Audio/video equipment
• Automotive dash controls

Package Includes

• 1 X 12X12X15mm Tactile Switch
