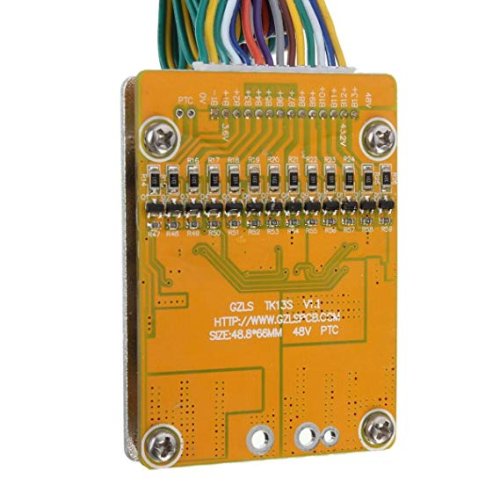

13S 48V 20A Lithium Battery Protection Module

Specifications Of 13S 48V 20A Lithium Battery Protection Module

• Continuous discharging current : 20A

• Instantaneous diacharge current : 100A

• Charging voltage : 54.6V

• Charging current : 20A(Max)

• Over-charge detect : 4.28±0.05V

• Protect delay : 100ms

• Over-charge release : 4.08±0.05V

• Over-discharge : 2.55±0.08V

• Over-discharge detect delay : 50mS

• Release voltage : 2.9±0.1V

• Detect voltage : 150mV

• Detect delay : 15mS

• Current detect : 120±5A

• Resistance : ≤15mΩ

• Working current : ≤50uA

• Sleep Current(when Over-discharge) : ≤10uA

• Working temperature : -30~80°C
