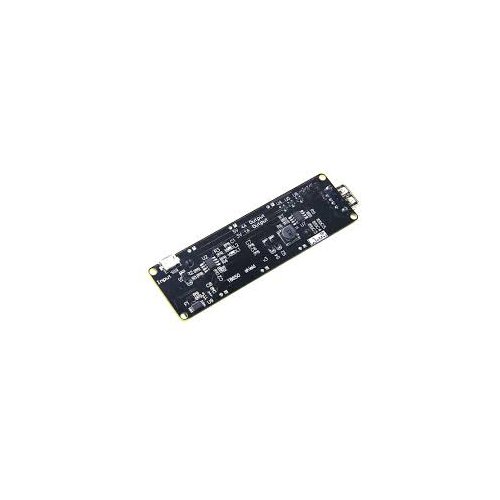

18650 Battery shield V3

18650 Battery shield V3 (Raspberry Pi & Arduino)

Now 18650 battery shield has updated to V3. You can use this battery shield to power many products like Raspberry Pi or arduino. At this version 18650 shield has a protection. The output current can reach 2A.

18650 battery shield V3 is a low cost powerful shield which can be used to Raspberry Pi, Arduino, D-duino,etc

Features of 18650 Battery Shield Module

• 1 switch control USB output. The switch make you can control USB power output easily.

• 3V output port x3. The current can reach 1A. 1A current is enough for most 3V applications.

• 5V output port x3. The current can reach 4A. 4A current is easy to run Raspberry Pi or Arduino.

• Micro USB input. The charging current is set to 0.5A. This current is safe for 18650 battery.

• LED indicate (Green means full,Red means charging).

18650 Battery shield V3 Features

• Battery protection(Over charge or Over discharge)

• Micro USB port Input

• Type-A USB Output

• 0.5A current charging

• 1 switch control USB output

• 5~8V Input Voltage

• 3V & 1A Output

• 5V & 2A Output

• LED indicate(Green means full,Red means charging)

• 3V output port x3

• 5V output port x3

Be careful of "+" and "-", You should follow the direction of "+""-" on the PCB.nIf you put wrong direction, charging chip will be destroyed.
