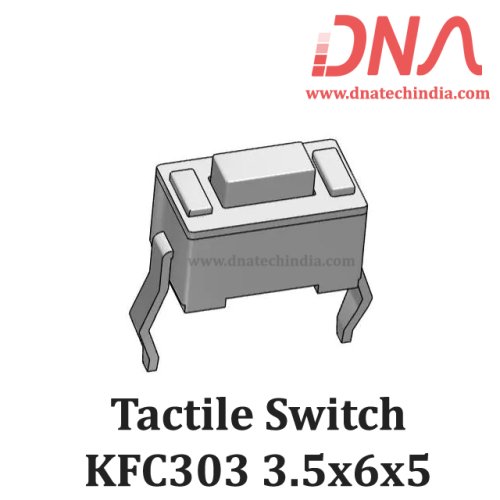

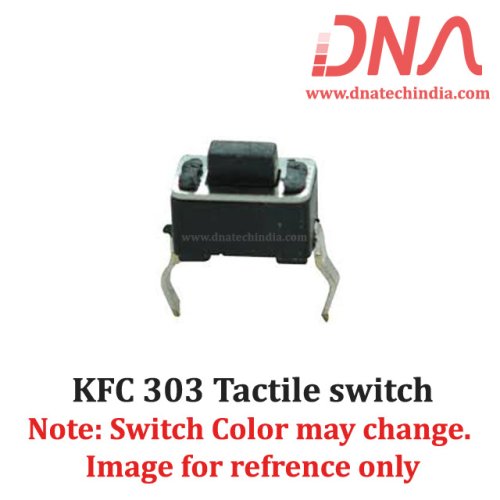

KFC 303 Tactile Push Button Switch 3.5x6x5

KFC-303 3.5x6x5 SPST Tactile Switch for PCB; 12V DC, 50mA, 30K cycles.

The KFC 303 Tactile Push Button Switch 3.5x6x5 is a reliable solution for your electronic projects. This SPST momentary switch is designed for easy PCB mounting and features a compact size that fits well in tight spaces. With a rating of 12V DC and a life expectancy of 30,000 cycles, it is ideal for applications such as reset buttons and general input controls. The KFC 303 ensures low contact resistance and high insulation resistance, making it suitable for various electronic devices. Explore how the KFC 303 Tactile Push Button Switch can enhance your projects today.

Discover high-quality products in the Switches & Keypad category from DNA. The KFC 303 Tactile Push Button Switch offers reliability and performance. Check other "Switches & Keypad" that we have in stock.

At DNA, we cater to all your electronic needs. If you cannot find specific parts, reach out to us. We can import items if they are not available. From Sensors to Microcontrollers, we support both retail and bulk purchases. Contact Us.

Features of KFC 303 Tactile Push Button Switch 3.5x6x5

• Compact size for PCB
• SPST momentary action
• High switching life of 30K cycles

Specification of KFC 303 Tactile Push Button Switch 3.5x6x5

• Switch Rating: DC 12V
• Current: 50mA
• Contact Resistance: 100 mΩ
• Insulation Resistance: 100 MΩ at 500V DC
• Withstand Voltage: AC 250V for 1min

Applications of KFC 303 Tactile Push Button Switch 3.5x6x5

• Reset buttons
• General input controls
• Electronic device interfaces

Related Links for KFC 303 Tactile Push Button Switch 3.5x6x5

• Other Products from Switches & Keypad Category

Package Includes

• 1 X KFC 303 Tactile Push Button Switch 3.5x6x5
