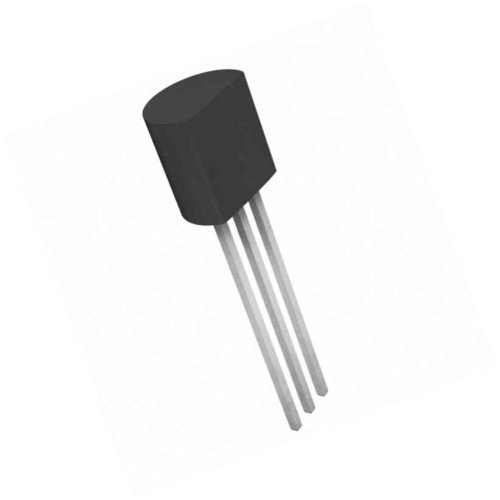

2SC8550 PNP Transistor

This is the low voltage high current small signal PNP transistor.

Features of 2SC8550

• Collector-Base Voltage V_CBO -30 V

• Collector-Emitter Voltage V_CEO -20 V

• Emitter-Base Voltage V_EBO -5 V

• Collector Current I_C -700 mA

• Junction Temperature T_J +150 °C

• Storage Temperature T_STG -40 ~ +150 °C

• Collector Dissipation(Ta=25 )℃ P_C 1 W

• Collector-Base Breakdown Voltage B_VCBO I_c=-100µA,I_E=0 -30 V

• Collector-Emitter Breakdown Voltage B_VCEO I_c=-1mA,I_B=0 -20 V

• Emitter-Base Breakdown Voltage B_VEBO I_E=-100µA,I_c=0 -5 V

• Collector Cut-off Current I_CBO V_CB=-30V,I_E=0 -1 uA

• Emitter Cut-off Current I_EBO V_EB=-5V,I_c=0 -100 nA
