BMS charge discharge controller HX-2S-D01 Module

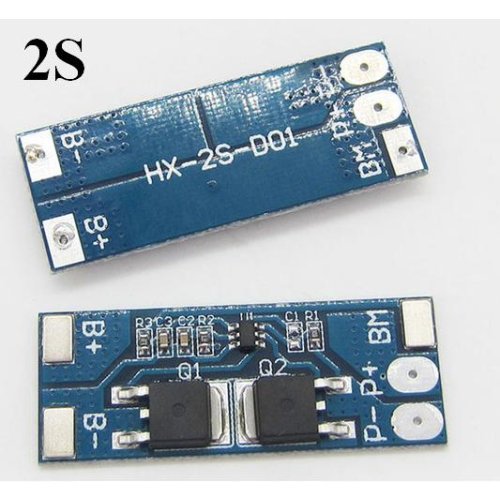

2S Li-Ion BMS HX-2S-D01 Module

Specifications Of BMS charge discharge controller HX-2S-D01 Module

• Charge voltage range : 4.25 ~ 4.35v ± 0.05v

• Discharge voltage range : 2.5-3.0v ± 0.05v

• Operating current : 8A

• Maximum current : 15A (at this current overload protection is triggered)

• Operating temperature : -40 --- + 50 ° C

• Storage conditions : -40 --- + 80 ° C

• Quiescent current : less than 10uA

• Service life : more than 50,000 hours

• Resistance : short circuit protection less than 300 mΩ: protection, charge recovery

Main function:

• Overcharge protection, overdischarge protection, short circuit protection, overcurrent protection.

Product use:

• 2 lines 7.4V lithium Li-ion 18650 rechargeable battery.
