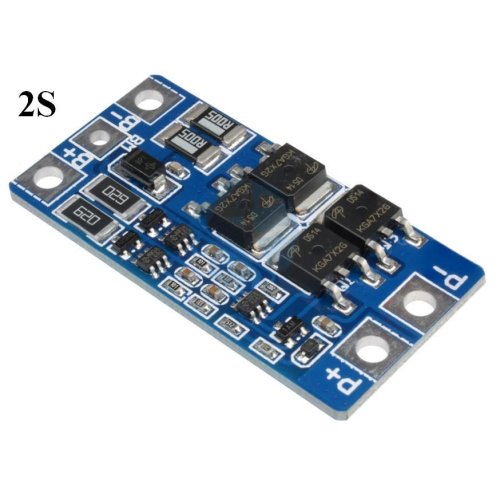

2S Li-Ion BMS HX-2S-JH20 Module
Out of Stock
*Images are shown only for references
Description
BMS charge discharge controller HX-2S-JH20 Module
2S Li-Ion BMS HX-2S-JH20 Module
Specifications of BMS charge discharge controller HX-2S-JH20 Module
Overcharge voltage range : 4.25-4.35v ± 0.05v
Upper working current : 10A
Upper limit instantaneous current : 20A
Quiescent current : less than 10uA
Internal resistance : less than 300mΩ
Operating temperature : -40 --- +50 °C
Storage conditions : -40 -- +80 °C
Effective life : more than 50,000 hours
Short circuit protection : can be protected, need to charge recovery
Charging voltage : 8.4V-9
V

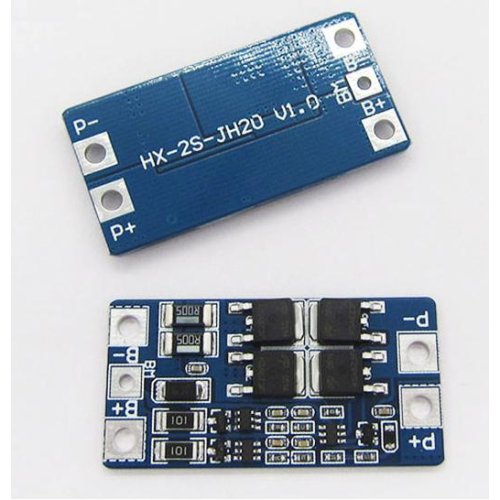

Welding point Description:
B + connected to the battery positive
B - connected battery negative
MB connects the battery 1 to the connection point before the battery
P + connected to the charge / discharge side of the positive (charge side / discharge side shared)
P - connect / discharge terminal negative (shared with charge / discharge).
ADD TO WISHLIST
SHARE
2S Li-Ion BMS HX-2S-JH20 Module
See 0 Ratings & Reviews |
WRITE A REVIEW
Generic
SKU:
DAB737
₹ 238.95
(inc GST)
REQUEST STOCK
Description
BMS charge discharge controller HX-2S-JH20 Module
2S Li-Ion BMS HX-2S-JH20 Module
Specifications of BMS charge discharge controller HX-2S-JH20 Module
Overcharge voltage range : 4.25-4.35v ± 0.05v
Upper working current : 10A
Upper limit instantaneous current : 20A
Quiescent current : less than 10uA
Internal resistance : less than 300mΩ
Operating temperature : -40 --- +50 °C
Storage conditions : -40 -- +80 °C
Effective life : more than 50,000 hours
Short circuit protection : can be protected, need to charge recovery
Charging voltage : 8.4V-9
V
Welding point Description:
B + connected to the battery positive
B - connected battery negative
MB connects the battery 1 to the connection point before the battery
P + connected to the charge / discharge side of the positive (charge side / discharge side shared)
P - connect / discharge terminal negative (shared with charge / discharge).
