BMS charge discharge controller HX-2S-S01 3 AMP 7.4 VOLT

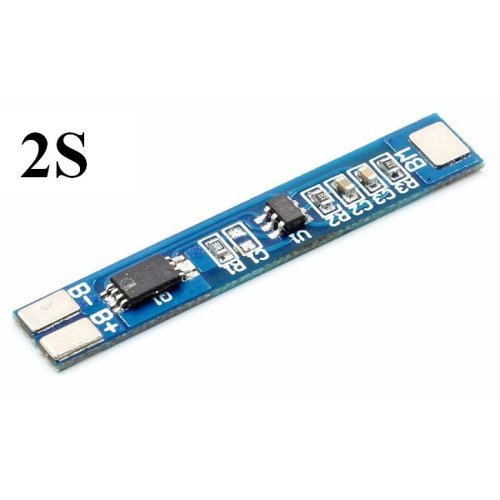

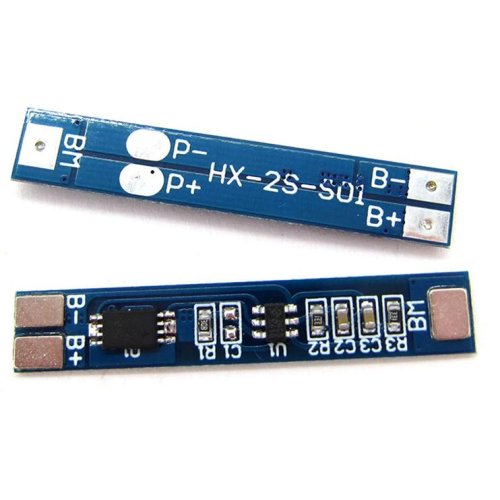

2S Li-Ion BMS HX-2S-S01 3 AMP 7.4 VOLT MODULE

The BMS HX-2S-S01 (Battery Management System) is a battery management system that is designed to monitor the process of charging and discharging lithium-ion type 18650 batteries, as well as monitoring their status.

The main protective functions of the system include: over voltage protection during charging, short circuit, overcharge and battery discharge.

The protection module has a balancing function, which is to ensure a uniform charge of the batteries. Balancing works continuously and independently of the protection scheme. To ensure proper balancing, you must use batteries of the same capacity and quality. Disconnection of the battery occurs when the voltage reaches 4.2 ~ 4.35V, and the discharge when the voltage drops to 2.7 ~ 3.0V. The use of this module helps to prevent premature battery wear and ensure their proper and safe functioning.

Specifications of BMS charge discharge controller HX-2S-S01 3 AMP 7.4 VOLT

• Number of batteries : 2

• Rated voltage : 7.4-8.4V

• Upper charge cut-off threshold : 4.2 ~ 4.35V ± 0.05V

• Lower cutoff threshold : 2.7 ~ 3.0V ± 0.05V

• Operating current : 2A

• Maximum operating current : 3A

• Quiescent current : less than 10µA
