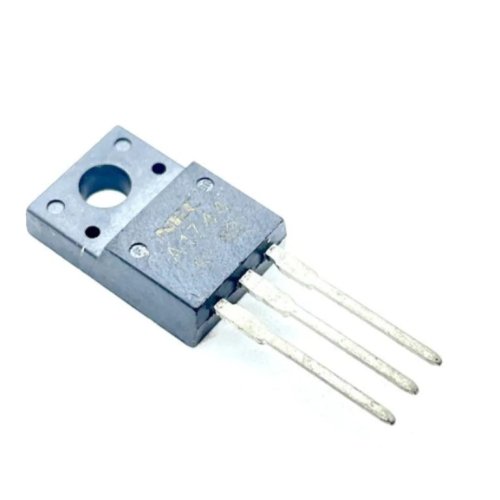

2SA1744 PNP Silicon Epitaxial NEC Transistor for High-Speed Switching

2SA1744 PNP Transistor for high-speed switching with low saturation voltage and high current gain.

The NEC 2SA1744 PNP Silicon Epitaxial Transistor is designed for high-speed switching applications. It features low saturation voltage and high current gain, making it suitable for driving DC/DC converters and actuators. This transistor's compact package allows for space-saving PCB designs, reducing overall mounting costs. The 2SA1744 PNP transistor excels in various applications, including switching circuits and low-frequency amplifiers. Its resin-molded package ensures high-density mounting, ideal for modern electronic devices.

With a collector-emitter voltage of -50V and a collector current of -150mA, the NEC 2SA1744 is a reliable choice for electronic projects. Its low power consumption enhances efficiency in electronic designs, making it a preferred option for engineers in India. Explore the benefits of the 2SA1744 transistor for your next project, ensuring optimal performance in your circuits.

Discover high-quality products in the Diodes & Transistors category at DNA. The NEC 2SA1744 is a reliable choice for high-speed switching needs. Explore our range of Diodes & Transistors and enhance your electronic projects. Check other "Diodes & Transistors" that we have in stock.

At DNA, we cater to all your electronic component needs. If you’re looking for specific parts like Inductors, LCDs, Super Capacitors, or Sensors, reach out to us. We can import components not in stock and support both retail and bulk orders. Contact Us.

Features of 2SA1744 PNP Silicon Epitaxial NEC Transistor for High-Speed Switching

• High-speed switching
• Low saturation voltage
• Low power consumption
• Compact package
• Suitable for low-power amplification

Specification of 2SA1744 PNP Silicon Epitaxial NEC Transistor for High-Speed Switching

• Type: PNP Silicon Epitaxial Transistor
• Collector-Emitter Voltage (VCEO): -50 V
• Collector-Base Voltage (VCBO): -60 V
• Emitter-Base Voltage (VEBO): -5 V
• Collector Current (IC): -150 mA
• Collector Power Dissipation (PC): 200 mW
• DC Current Gain (hFE): 200 to 700

Applications of 2SA1744 PNP Silicon Epitaxial NEC Transistor for High-Speed Switching

• Switching circuits
• Low-frequency amplifiers
• General-purpose electronic circuits
• Driver circuits
• DC/DC converters

Related Links for 2SA1744 PNP Silicon Epitaxial NEC Transistor for High-Speed Switching

• Other Products from Diodes & Transistors Category

Package Includes

• 1 X 2SA1744 PNP Silicon Epitaxial NEC Transistor for High-Speed Switching
