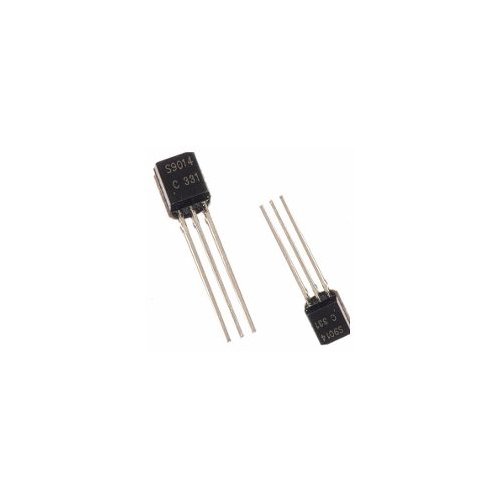

2SC9014 NPN Transistor

2SC9014 NPN Transistor is the pre-amplifier. The 2SC9014 NTE is Equivalent to NTE123AP NPN audio transistor.

Feature of 2SC9014 NPN Transistor

• High Total Power Dissipation(PT=400mV)

• High h_FE and good Linearity

• Complimentary to SS9015

• Collector Base Voltage (V_CBO) = 50V

• Collector Emitter Voltage (V_CEO) = 45V

• Emitter Base Voltage (V_EBO) = 5V

• Junction Temp. Tj = 150⁰C

• Collector Dissipation (P_c) = 450mW

• Collector current (Ic) = 100mA

• Storage Temp. Tstg = -55 to 150⁰C
