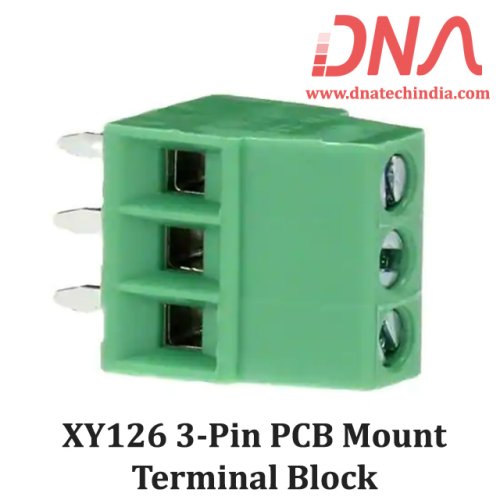

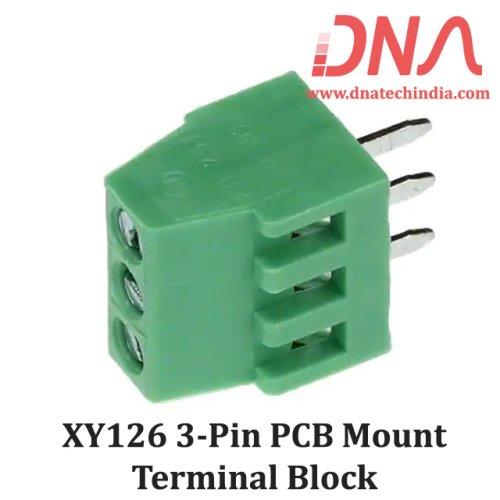

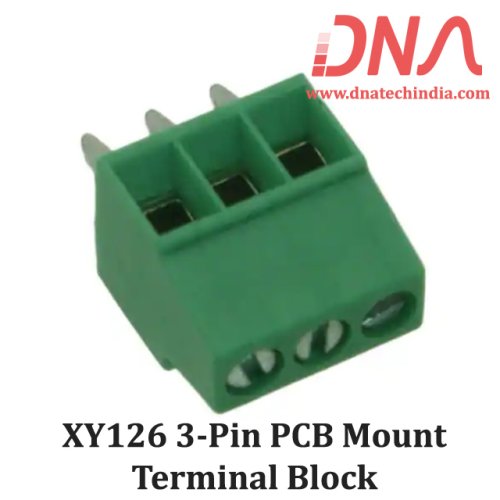

3 Pin XY126 5.08 mm pitch PCB Mount Terminal Block

XY126 PCB Mount 3 Pin 5.08mm pitch Screwable Terminal Block Connector

This is 3 PIN PCB Mount screwable Terminal Block Connector. The XY126 Pluggable Screw Terminal Block is a compact and versatile terminal block with 5.08 mm pitch and is very useful if you want to screw connecting wires to PCB.

In this XY126 3 Pin PCB Mount Screwable terminal block you can screw wires from 26-14 AWG. These terminal blocks has voltage rating of 300 volts and current rating upto 10 Ampere.

One really cool feature of the 2 pin & 3 Pin XY126 Terminal Connector is you can slide lock them together to form any size you want eg 4, 5, 10 even 20 without any problem. So basically you do not need to keep variety of these screwable terminals keeping just 2 pin version and 3 pin version will be sufficient for all your requirements.

DNA Solutions has various types of screwable connectors. Check our complete collections of Screwable Terminal Block (XY126/XY128/XY129/HB9500). We also have various types of XY-2500 F-B series combicon connectors or two piece terminal block.

Dimensions of XY126 3 Pin Screwable Terminal Block

• Poles: 3 P

• Pitch: 5.0mm (0.197")

Electrical Data of XY126 3 Pin Screwable Terminal Block

• Standard: UL

• Voltage Rating: 300 Volta

• Current Rating: 10 Ampere

• Wire Range: 26-14AWG

• Withstand Voltage: AC2000V/Min
