3 Watt LED MODULE

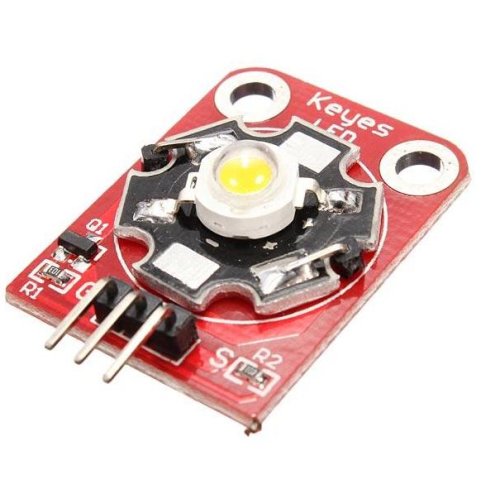

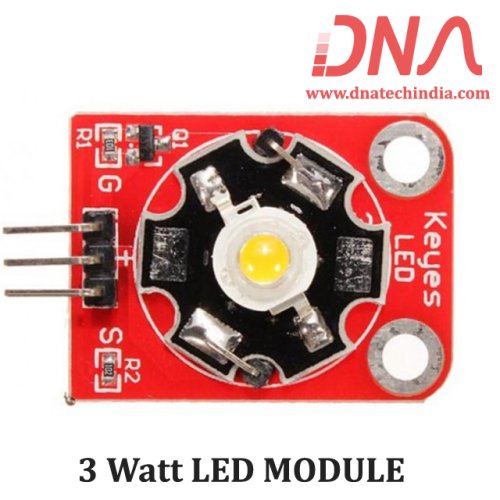

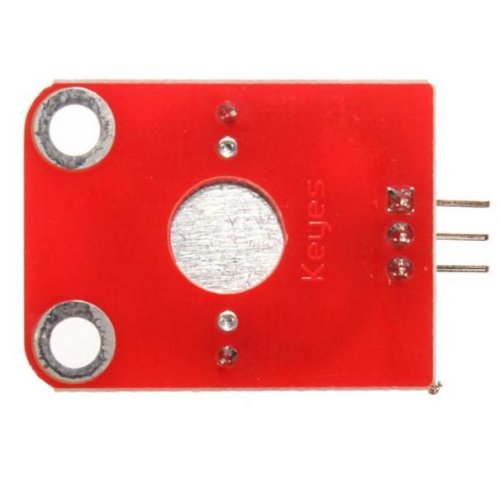

3 Watt Arduino Compatible white LED Module

Now create bright light projects with easy digital control using this easy to use 3 watt LED module. This is a cool (gets hot!!) easy to use 3 watt LED module with inbuilt driver transistor so you do not have to use and external driver to control it. The light can Be turned ON/OFF by any pin of the Arduino moreover using PWM you can even control its intensity. This LED Module can also be used with other Microcontrollers and even with Raspberry Pi.

We have Various sizes of Modules. Check out our complete collection of Modules

Features of 3 Watt white LED MODULE

• Color temperature : Warm White 3000-3200K / white 6000-6500K

• Forward current : 700 ma

• Luminous flux : White 180-200LM (lumens)

• Forward voltage : 3.3 - 3.6 V

• Reverse voltage : 5 Volts

• Power : 3 Watts

• Viewing angle : 180°

• Working temperature : -20° to 60°

• Storage temperature : 20° to 60°
