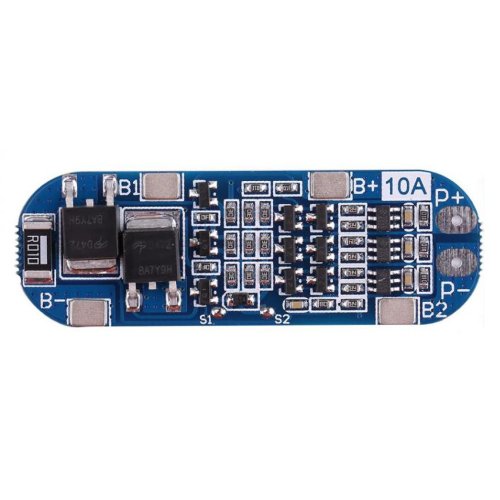

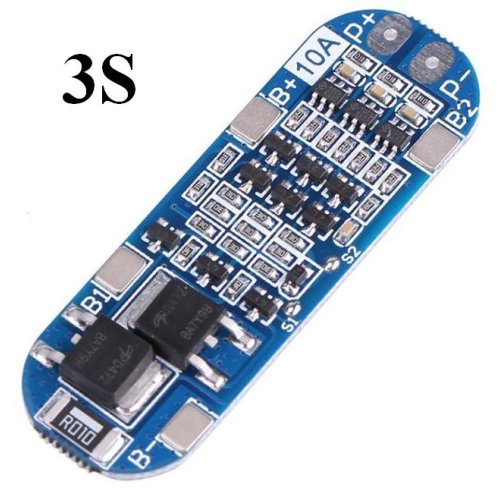

3S 10A Li-ion Battery Protection Board BMS PCM HX-3S-FL10A-A Module
Three series of lithium battery protection board.
Automatically cancel protection after protection conditions restore.
With function of overcharge protection, over discharge protection, short circuit protection, over-current protection.
Suitable for lithium battery pack of 11.1V, 12V, 12.6V.
Fine workmanship and durable.
Quiescent current <30uA, so power consumption is small.
Model : HX-3S-FL10-A
Weight : 3.5 g
Over Voltage Range : 4.25-4.35V ±0.05V
Over Discharge Voltage Range : 2.3-3.0V ±0.05V
Maximum Operating Current : 6-8A
Maximum Transient Current : 10-13A
Quiescent Current : <30uA
Internal resistance : <100mΩ
Charging Voltage : 12.6 – 13V
Working Temperature : -40~+50℃
Storage Condition : -40~ +80℃
Effective Life : > 30000 hours
Short circuit protection : Yes, delayed self recovery
