Description:

• 3 series (for three 18650 batteries or polymer lithium battery series combination)

• The rated voltage of 10.8 V (polymer battery)

• 18650 or 11.1 V (nominal voltage of 3.7 V lithium battery)

• 12.6 V voltage after a full battery (lithium)

• 8 a discharge (refers to the maximum discharge current limit)

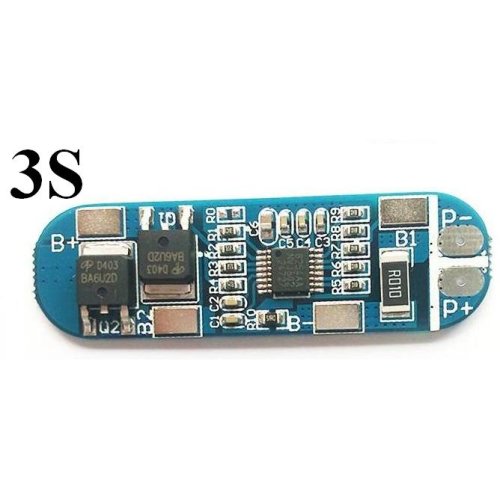

Specification Of BMS Charger Protection Board HX-3S-D02 Module

• Model : HX-3S-A02

• The maximum working current : 3-4A

• Maximum instantaneous current : 7-8A

• Static electricity : less than 10UA

• Resistance : less than 60 mΩ

• Charging voltage range : 4.25-4.35V + / - 0.05V

• Discharge voltage range : 2.3-3.0V + / - 0.05V

• Working temperature : - 40 - + 50 °

• Storage conditions : - 40 - + 80 °

• Useful life : more than 30000 hours

• Short circuit protection, can protect, delay the recovery
