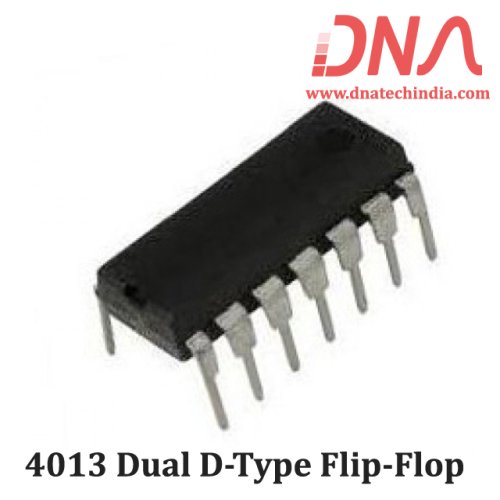

The CD4013B dual D-type flip-flop is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement mode transistors.
Each flip-flop has independent data, set, reset, and clock inputs and “Q” and “Q” outputs. These devices can be used for shift register applications, and by connecting “Q” output to the data input, for counter and toggle applications. The logic level present at the “D” input is transferred to the Q output during the positive-going transition of the clock
pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or reset line respectively.
We have Various sizes of 4000 Series IC's. Check out our complete collection of 4000 Series IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
