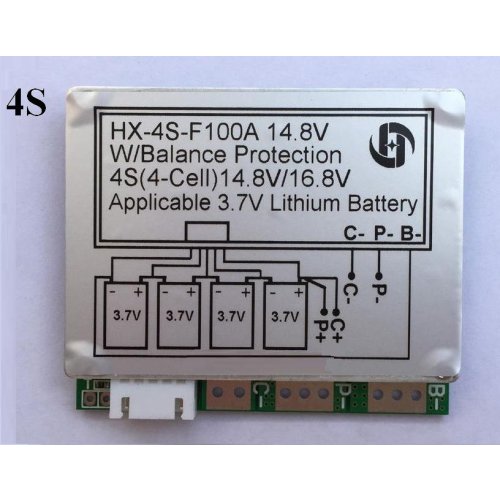

Discharge charge controller 4 Li-Ion 18650 14.8V 100A HX-4S-F100A Module

4S Li-Ion BMS 14.8 Volt 100 Amp HX-4S-F100A Module

Specifications Of Discharge charge controller 4 Li-Ion 18650 14.8V 100A HX-4S-F100A Module

Discharge

• Discharge current : 100A

• Instant discharge current : 120 A

Charging

• Charging voltage : 16.8 V

• Charging current : 10A

Overcharge protection

• Overvoltage control : 4.28 ± 0.025 V

• Delay protection : 0.5S

• Overload discharge : 4.08 ± 0.1 V

Charge balance

• Charge balance control : 4.2V

• Overload discharge : 4.2V

• Balanced current charge : 45mA

Discharge protection

• Over discharge control : 2.9 ± 0.1V

• Delay : 0.1S

• Overload discharge : 3.0 ± 0.1 V

Overcurrent protection

• Overcurrent control : 150mV

• Delay : 9mS

• High current protection : 75A

• Overcurrent Protection Conditions : Load disconnection


Short circuit protection

• Short circuit conditions : External load

• Delay : 250uS

• Short circuit protection conditions : Load disconnection

Internal resistance

• Main circuit resistance : ≤45mΩ

Power consumption

• Operating current : ≤8uA
