4S Li-Po BMS HX-JH-001 4S Module

18650 Polymer Lithium Battery Balanced Function Board HX-JH-001 4S Module

For non-balanced rechargeable lithium battery pack, the charge balance makes the battery pack in the battery pack at the same time fully charged.

Product Parameters

• Equalization Voltage : 4.2V

• Equalizing Current : 66mA

Precautions

The balance sheet does not charge and discharge protection function, can not replace the protection board, when the battery is charged, the first fully charged battery through the resistance discharge, when the split equalization.

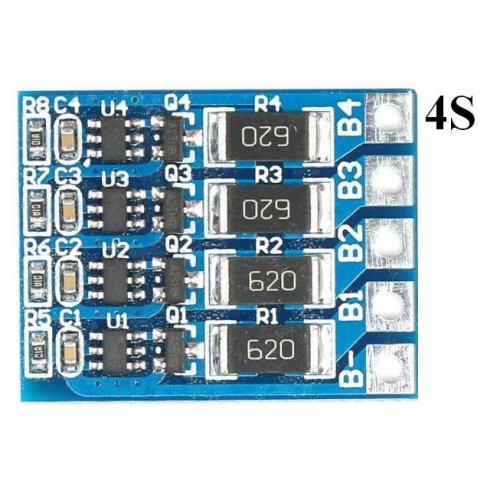

Connector

• B- : Connect the negative of the battery pack

• B1 : Connect the battery 1 to the contacts in battery 2

• B2 : Connect the battery 2 to the contacts in battery 3

• B3 : Connect the battery 3 to the contacts in battery 4

• B4 : Connect the positive of the battery pack
