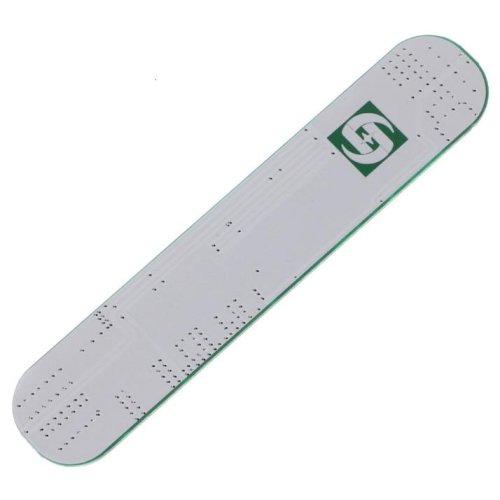

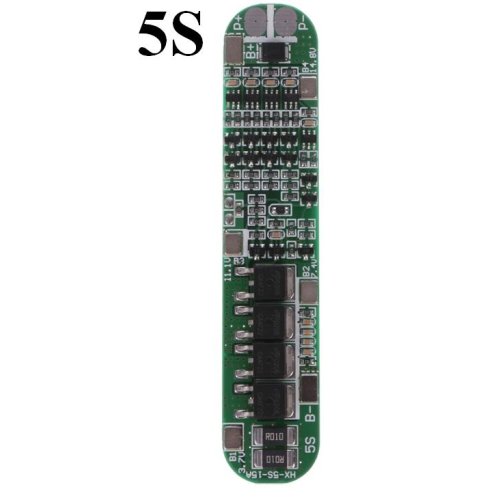

18650 Lithium Battery Charger BMS Protection Board HX-5S-15A Module
P+ P- is the abbreviation of PACK+ PACK-, that is, the output of positive and negative poles
Discharge:
Continuous discharge current : 15A(max)
Instantaneous discharge current : 25A
Charge:
Charge voltage : 21V
Charging current : 15A(max)
Overcharge Protect:
Over-charge detect : 4.28±0.05V
Protect delay : 0.5s
Over-charge release : 4.28±0.05V
Over-discharge Protect :
Over-discharge detect : 2.55±0.08V
Over-discharge detect delay : 0.1s
Release voltage : 2.9±0.1V
Short-circuit Protect :
Protect condition : Cut load
Detect delay : 250uS
Release condition : Cut load
Over-current Protect :
Detect voltage : 150mV
Detect delay : 9MS
Current detect : 30±3A
Release condition : Cut load
Inner Resistance : ≤20mΩ
Self-consumption :
Working current : ≤30uA
Sleep current : (when over-charge)≤10uA
Working Temperature Range : -30-+80
