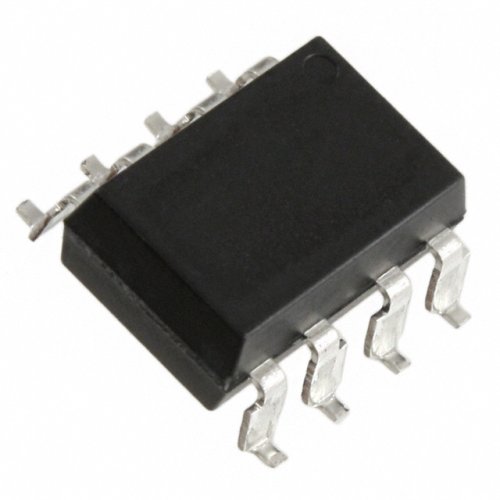

The 6N137-SMD is single channel 10 MBd opto-coupler utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector.
The detector has an open drain NMOS-transistor output, providing less leakage compared to an open collector Schottky clamped transistor output. For the single channel type, an enable function on pin 7 allows the detector to be strobed. The use of a 0.1 μF bypass capacitor connected between pin 5 and 8 is recommended.
Choice of CMR performance of 15 kV/μs, 5 kV/μs, and 1000 V/μs
High speed : 10 MBd typical
+5 V CMOS compatibility
Pure tin leads
Guaranteed AC and DC performance over temperature : -40 °C to +100 °C temperature range
Meets IEC 60068-2-42 (SO2) and IEC 60068-2-43 (H2S) requirements
Low input current capability of 5 mA
Microprocessor system interface
PLC, ATE input/output isolation
Computer peripheral interface
Digital fieldbus isolation: CC-link, DeviceNet, profibus, SDS
High speed A/D and D/A conversion
AC plasma display panel level shifting
Multiplexed data transmission
Digital control power supply
Ground loop elimination, noise isolation
