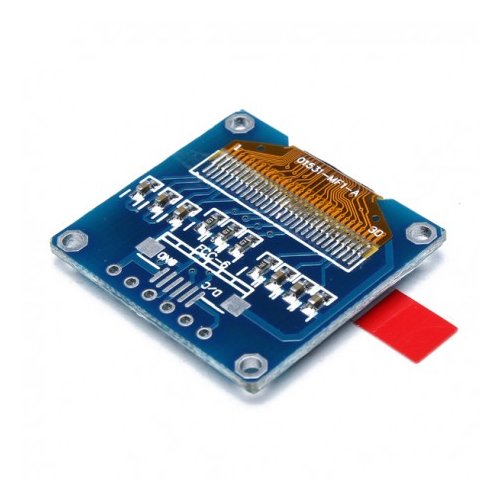

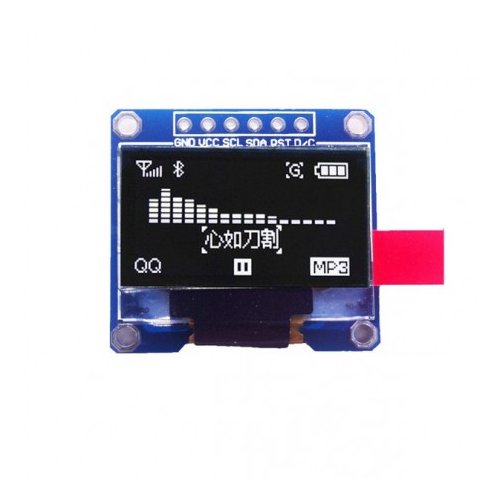

This is a 0.96 inch white OLED display module.
The display module can be interfaced with
any microcontroller using SPI/IIC protocols. It is having a resolution
of 128x64. The package includes display board,display, 6 pin male header presoldered to board.
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
OLED monochrome 128x64 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption, White color.
Super High Brightness (Adjustable)
Super High Contrast (Adjustable)
Embedded Driver/Controller
Display size : 0.96"
Resolution radio :128 x 64
Interface modes : SPI
working voltage : 3.3V
Control Chip : SSD1306
See 2 Ratings & Reviews |
This is a 0.96 inch white OLED display module.
The display module can be interfaced with
any microcontroller using SPI/IIC protocols. It is having a resolution
of 128x64. The package includes display board,display, 6 pin male header presoldered to board.
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
OLED monochrome 128x64 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption, White color.
Super High Brightness (Adjustable)
Super High Contrast (Adjustable)
Embedded Driver/Controller
Display size : 0.96"
Resolution radio :128 x 64
Interface modes : SPI
working voltage : 3.3V
Control Chip : SSD1306
