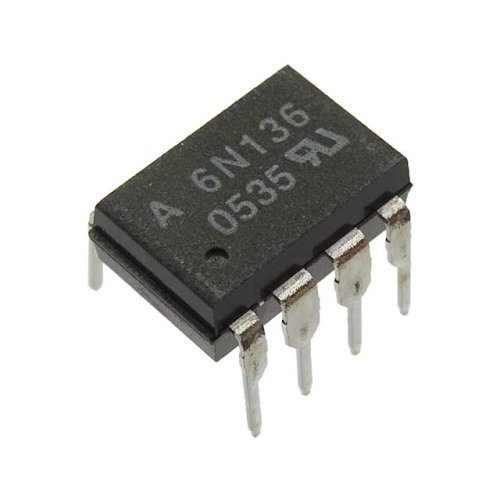

The 6N136 is an optocoupler with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high-speed transistor in a DIP8 plastic package.
Signals can be transmitted between two electrically separated circuits up to frequencies of 2 MHz. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages.
Isolation test voltages : 5300 VRMS
TTL compatible
High bit rates : 1 Mbit/s
High common-mode interference immunity
Bandwidth 2 MHz
Open-collector output
External base wiring possible
Reverse voltage (VR) 5V
Forward current (IF) 25mA
Storage temperature range (Tstg) - 55 to +150°C
Ambient temperature range (Tamb) - 55 to +100°C
Soldering temperature max. ≤ 10 s, dip soldering ≥ 0.5 mm from case bottom (Tsld) 260°C
Maximum output current 16mA
Base current (IB) 5mA
