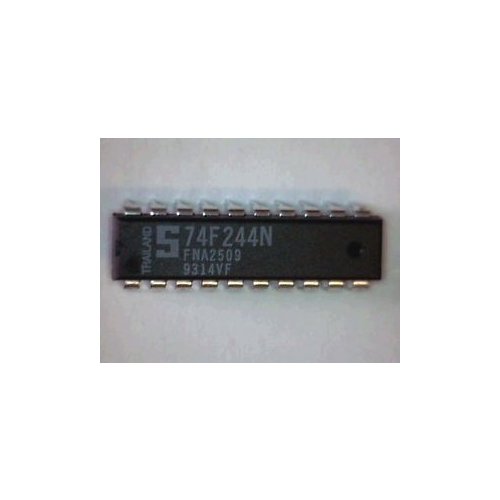

74F244N Octal Buffers & Line Drivers

These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

Taken together with the ′F240 and ′F241, these devices provide the choice of selected combinations of inverting and noninverting outputs, symmetrical OE (active-low output-enable) inputs, and complementary OE and OE inputs.
The ′F244 is organized as two 4-bit buffers/line drivers with separate output enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state. The SN74F244 is available in TI’s shrink small-outline package (DB), which provides the same I/O pin count and functionality of standard small-outline packages in less than half the printed-circuit-board area. The SN54F244 is characterized for operation over the full military temperature range of −55°C to 125°C. The SN74F244 is characterized for operation from 0°C to 70°C.

Features of 74F244N

• Supply voltage range, VCC : −0.5 V to 7 V

• Input voltage range, VI : −1.2 V to 7 V

• Input current range : −30 mA to 5 mA

• Voltage range applied to any output in the disabled or power-off state : −0.5 V to 5.5 V

• Voltage range applied to any output in the high state : −0.5 V to VCC

• Current into any output in the low state : SN74F244 128 mA

• Operating free-air temperature range : SN74F244 0°C to 70°C

• Storage temperature range : −65°C to 150°C
