74HC08A SMD IC

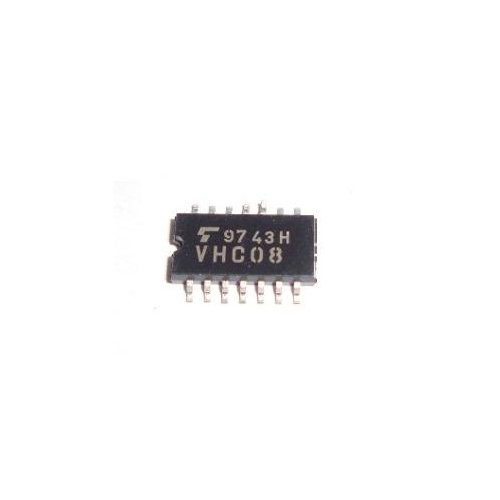

SMD 74HC08 Quad 2-Input AND Logic Gate IC

The 74HC08 is a Quad 2 input AND logic gate IC in SOIC package this IC is identical in pinout to the 74LS08. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

Features Of 74HC08A SMD IC

• Output Drive Capability : 10 LSTTL Loads

• Outputs Directly Interface to CMOS, NMOS and TTL

• Operating Voltage Range : 2.0 to 6.0 Volts

• Low Input Current : 1 ua

• High Noise Immunity Characteristic of CMOS Devices

• In Compliance With the JEDEC Standard No. 7A Requirements

• Chip Complexity : 24 FETs or 6 Equivalent Gates

• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free and are RoHS Compliant
