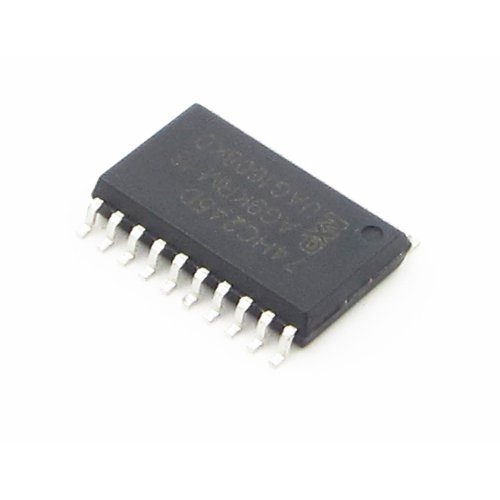

74HC245 SMD Octal bus transceiver

The 74HC245 & 74HCT245 is an 8-bit transceiver with 3-state outputs.

The device features an output enable (OE) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features of 74HC245

• Complies with JEDEC standard JESD7A

• Input levels for 74HC245 : CMOS level

• Octal bidirectional bus interface

• Non-inverting 3-state outputs

• ESD protection :

• HBM JESD22-A114F exceeds 2000 V

• MM JESD22-A115-A exceeds 200 V

• Multiple package options

• Specified from -40C to +85C and from -40C to +125C
