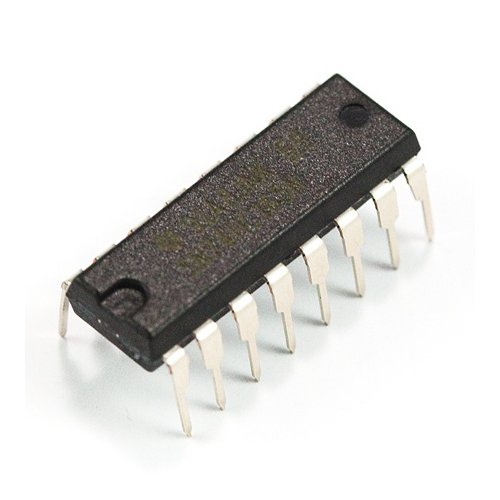

74HC4052 Multiplexer / Demultiplexer
*Images are shown only for references
74HC4052 Multiplexer / Demultiplexer

Description

74HC4052 Dual 4-Channel Analog Multiplexer / Demultiplexer

The 74HC4052; 74HCT4052 is a dual single-pole quad-throw analog switch (2x SP4T) suitable for use in analog or digital 4:1 multiplexer/demultiplexer applications.

Each switch features four independent inputs/outputs (nY0, nY1, nY2 and nY3) and a common input/output (nZ). A digital enable input (E) and two digital select inputs (S0 and S1) are common to both switches. When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features of 74HC4052

  • Wide analog input voltage range from -5 V to +5 V

  • Low ON resistance :

- 80 ohm (typical) at VCC - VEE = 4.5 V

- 70 ohm (typical) at VCC - VEE = 6.0 V
- 60 ohm (typical) at VCC - VEE = 9.0 V
- For 74HCT4052 : TTL level
- MM JESD22-A115-A exceeds 200 V
- CDM JESD22-C101E exceeds 1000 V

  • Specified from -40 oC to +85 oC and -40 oC to +125 oC

  • Logic level translation : to enable 5 V logic to communicate with -5 V analog signals

  • Typical ‘break before make’ built-in

  • Complies with JEDEC standard no. 7AInput levels:

- For 74HC4052 : CMOS level

  • ESD protection :

- HBM JESD22-A114F exceeds 2000 V

74HC4052 Multiplexer / Demultiplexer

3.7

See 3 Ratings & Reviews |

SKU: DAA239 | 1050

₹ 20.06  (inc GST)

Description

74HC4052 Dual 4-Channel Analog Multiplexer / Demultiplexer

The 74HC4052; 74HCT4052 is a dual single-pole quad-throw analog switch (2x SP4T) suitable for use in analog or digital 4:1 multiplexer/demultiplexer applications.

Each switch features four independent inputs/outputs (nY0, nY1, nY2 and nY3) and a common input/output (nZ). A digital enable input (E) and two digital select inputs (S0 and S1) are common to both switches. When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features of 74HC4052

  • Wide analog input voltage range from -5 V to +5 V

  • Low ON resistance :

- 80 ohm (typical) at VCC - VEE = 4.5 V

- 70 ohm (typical) at VCC - VEE = 6.0 V
- 60 ohm (typical) at VCC - VEE = 9.0 V
- For 74HCT4052 : TTL level
- MM JESD22-A115-A exceeds 200 V
- CDM JESD22-C101E exceeds 1000 V

  • Specified from -40 oC to +85 oC and -40 oC to +125 oC

  • Logic level translation : to enable 5 V logic to communicate with -5 V analog signals

  • Typical ‘break before make’ built-in

  • Complies with JEDEC standard no. 7AInput levels:

- For 74HC4052 : CMOS level

  • ESD protection :

- HBM JESD22-A114F exceeds 2000 V
