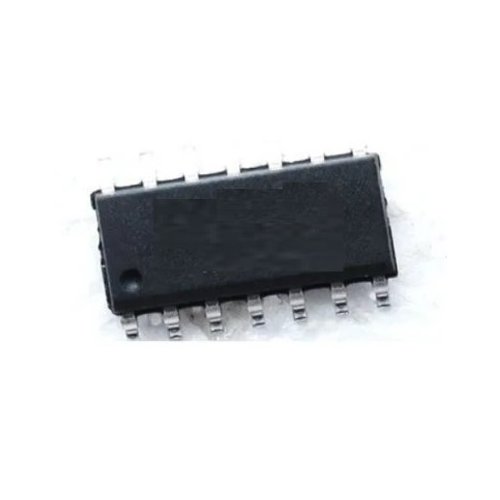

7408 Quad 2-Input AND Gate SMD IC

7408 Quad AND Gate IC with 4 gates, TTL compatible, low power consumption.

The 7408 Quad 2-Input AND Gate SMD IC is an essential component in digital circuits. It features four independent AND gates that function efficiently when both inputs are HIGH. This IC operates within a voltage range of 4.75 V to 5.25 V, making it suitable for various logic control applications. Its low power consumption and high noise immunity enhance performance in demanding environments. The 7408 Quad 2-Input AND Gate SMD IC is ideal for signal validation, arithmetic logic units, and industrial automation systems, ensuring reliable operation in your projects. Explore how this component can streamline your designs with its robust functionalities.

At DNA, we provide high-quality 7400 Series IC's from trusted manufacturers. Explore our range of 7400 Series IC's to find the perfect components for your electronic projects. Check other 7400 Series IC's that we have in stock.

If you are searching for specific electronic components, contact DNA. We can help you find parts like LCDs, Connectors, and more. If an item is unavailable, we can import it for you. We support both retail and bulk purchases. Contact Us.

Features of 7408 Quad 2-Input AND Gate SMD IC

• Four independent 2-input AND gates
• High-speed TTL compatible
• Low power consumption
• High noise immunity
• Wide operating voltage range

Specification of 7408 Quad 2-Input AND Gate SMD IC

• Logic Function: AND Gate
• Number of Gates: 4
• Number of Inputs per Gate: 2
• Output Type: Standard TTL
• Operating Voltage: 4.75 V to 5.25 V
• Input Logic Level HIGH: 2 V

Applications of 7408 Quad 2-Input AND Gate SMD IC

• Digital logic control circuits
• Signal validation and gating
• Arithmetic logic units
• Industrial automation systems
• Timers and counters

Related Links for 7408 Quad 2-Input AND Gate SMD IC

• Other Products from 7400 Series IC's Category

Package Includes

• 1 X 7408 Quad 2-Input AND Gate SMD IC
