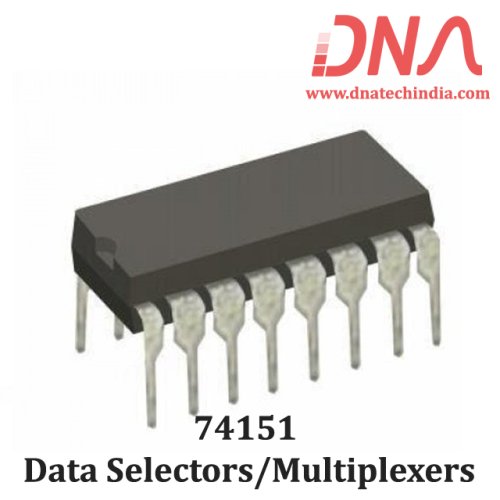

74151 Data selectors/multiplexers contain full on-chip decoding to select the desired data source.
74151A selects one-of-eight data sources. The 74151A have a strobe input which must be at a low logic level to enable these devices. A high level at the strobe forces the W output high and the Y output (as applicable) low. It also has complementary W and Y outputs, whereas the 150 has an inverted (W) output only. The 74151A incorporates address buffers which have symmetrical propagation delay times through the complementary paths. This reduces the possibility of transients occurring at the output(s) due to changes made at the select inputs, even when the 74151A outputs are enabled (i.e., strobe low).
We have Various sizes of 7400 Series IC. Check out our complete collection of 7400 Series IC.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
selects one-of-eight data lines
Performs parallel-to-serial conversion
Permits multiplexing from N lines to one line
Also for use as Boolean function generator
Typical average propagation delay time, data input to W output: 9 ns
Typical power dissipation: 135 mW
Supply Voltage 7V
Input Voltage 5.5V
Operating Free Air Temperature Range 0˚C to +70˚C
Storage Temperature Range −65˚C to +150˚C
