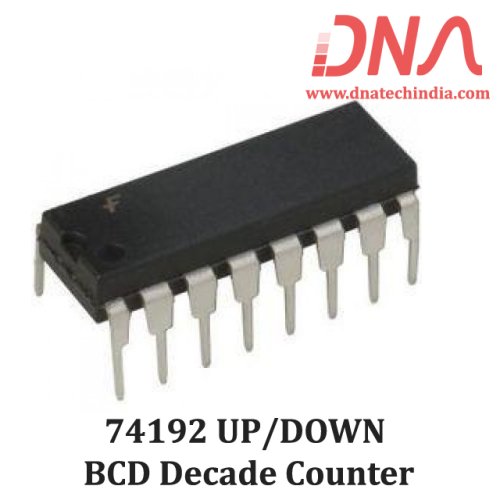

The SN54/74LS192 is an UP/DOWN BCD Decade (8421) Counter and the SN54/74LS193 is an UP/DOWN MODULO-16 Binary Counter.
Separate Count Up and Count Down Clocks are used and in either counting mode the circuits operate synchronously. The outputs change state synchronous with the LOW-to-HIGH transitions on the clock inputs. Separate Terminal Count Up and Terminal Count Down outputs are provided which are used as the clocks for a subsequent stages without extra logic, thus simplifying multistage counter designs. Individual preset inputs allow the circuits to be used as programmable counters. Both the Parallel Load (PL) and the Master Reset (MR) inputs asynchronously override the clocks.
We have Various sizes of 7400 Series IC. Check out our complete collection of 7400 Series IC.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Low Power 95 mW Typical Dissipation
High Speed 40 MHz Typical Count Frequency
Synchronous Counting
Asynchronous Master Reset and Parallel Load
Individual Preset Inputs
Cascading Circuitry Internally Provided
Input Clamp Diodes Limit High Speed Termination Effects
