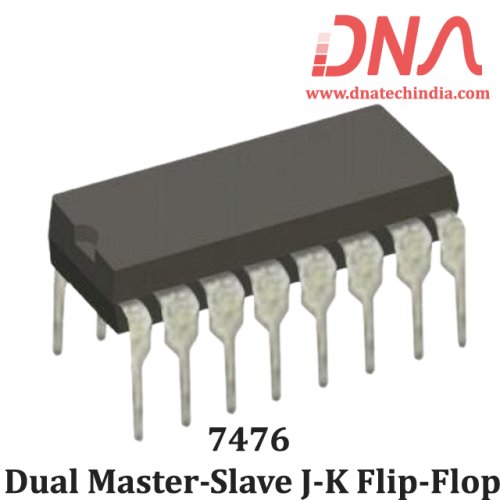

7476 Dual Master-Slave J-K Flip-Flop

7476 IC contains two independent positive pulse triggered J-K flip-flops with complementary outputs.

The J and K data is processed by the flip-flop after a complete clock pulse. While the clock is LOW the slave is isolated from the master. On the positive transition of the clock, the data from the J and K inputs is transferred to the master. While the clock is HIGH the J and K inputs are disabled. On the negative transition of the clock, the data from the master is transferred to the slave. The logic state of J and K inputs must not be allowed to change while the clock is HIGH. The data is transferred to the outputs on the falling edge of the clock pulse. A LOW logic level on the preset or clear inputs will set or reset the outputs regardless of the logic levels of the other inputs.

We have Various sizes of 7400 Series IC. Check out our complete collection of 7400 Series IC.

Features of 7476 Flip-Flop

• Supply Voltage : 7V

• Input Voltage : 5.5V

• Operating Free Air Temperature Range : 0°C to +70°C

• Storage Temperature Range : −65°C to +150°C
