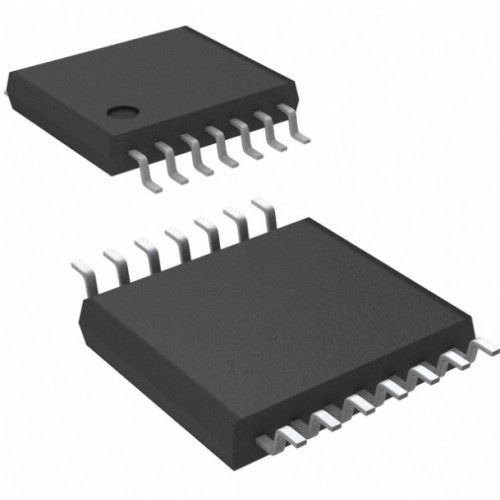

74AHC14PW-Q100 Hex Inverting Schmitt Trigger SMD IC

74AHC14PW-Q100 Hex Inverting Schmitt Trigger with overvoltage tolerant inputs and ESD protection.

The 74AHC14PW-Q100 Hex Inverting Schmitt Trigger SMD IC is designed for reliable performance in automotive applications. With a wide supply voltage range from 2V to 5.5V, this IC ensures compatibility with various systems. Its overvoltage tolerant inputs allow operation in mixed voltage environments, making it versatile for different projects. The device also features robust ESD protection, ensuring durability in demanding conditions.

This Schmitt Trigger IC offers low power dissipation and balanced propagation delays, enhancing efficiency in electronic circuits. The typical propagation delay is just 4.3ns, which is essential for high-speed applications. With an operating temperature range of -40°C to +125°C, the 74AHC14PW-Q100 is reliable for both commercial and automotive environments.

Explore the 74AHC14PW-Q100 Hex Inverting Schmitt Trigger SMD IC for your next electronic project. Its features, including low input leakage current and high noise immunity, make it a suitable choice for various applications. Ensure you have the right components for your designs with this dependable IC.

At DNA, we provide a wide selection of 7400 Series IC's from trusted brands. Discover the 74AHC14PW-Q100 and see how it fits your needs. Check other 7400 Series IC's that we have in stock.

If you are looking for specific electronic components, reach out to us. We can help you find parts like Inductors, Power Supplies, and more. If a part is not available, we can import it for you. Contact Us.

Features of 74AHC14PW-Q100 Hex Inverting Schmitt Trigger SMD IC

• Wide supply voltage range from 2V to 5.5V
• Overvoltage tolerant inputs
• High noise immunity
• Low power dissipation
• ESD protection exceeding 2000V

Specification of 74AHC14PW-Q100 Hex Inverting Schmitt Trigger SMD IC

• Logic Function: Inverter
• No. of Inputs: 1
• Inputs Logic Case Style
• Product Range: 74AHC14
• Supply Voltage Min: 2V
• Schmitt Trigger: Input
• Automotive Qualification: Standard

Applications of 74AHC14PW-Q100 Hex Inverting Schmitt Trigger SMD IC

• Automotive electronics
• Mixed voltage environments
• High-speed digital circuits
• Consumer electronics
• Industrial automation

Related Links for 74AHC14PW-Q100 Hex Inverting Schmitt Trigger SMD IC

• Other Products from 7400 Series IC's Category

Package Includes

• 1 X 74AHC14PW-Q100 Hex Inverting Schmitt Trigger SMD IC
