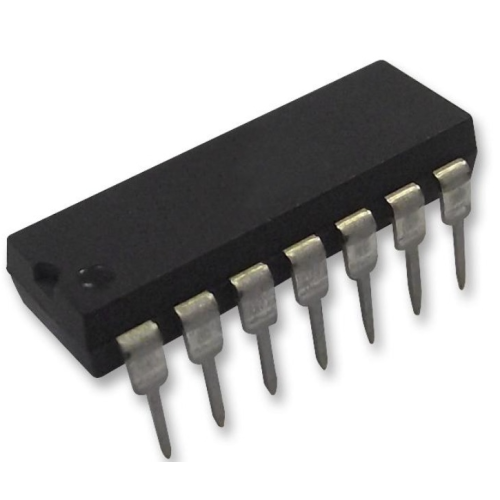

74LS86 Quad 2 Input Exclusive OR Gate DIP IC

74LS86 DIP IC + Quad 2-input XOR + Low power consumption + High-speed logic operation.

The 74LS86 Quad 2 Input Exclusive OR Gate DIP IC contains four independent 2-input XOR gates, ideal for various digital applications. It operates on a standard 5V TTL supply voltage and features low power consumption due to its Schottky TTL technology. The typical propagation delay is approximately 10ns, ensuring high-speed logic operation for efficient performance. This IC is suitable for data comparison, arithmetic circuits, and digital communication systems.

With an operating temperature range from 0°C to 70°C, the 74LS86 Quad 2 Input Exclusive OR Gate DIP IC offers versatility and reliability in various environments. The input clamping diodes enhance noise immunity, making it a robust choice for projects requiring precision. This product is an essential component for applications like parity generation and pulse shaping.

Explore the capabilities of the 74LS86 Quad 2 Input Exclusive OR Gate DIP IC for your next electronic project. Its features cater to both amateur and professional engineers looking for dependable logic solutions.

At DNA, we provide high-quality components like the 74LS86 Quad 2 Input Exclusive OR Gate DIP IC. Explore our range of 7400 Series IC's and enhance your projects. Check other '7400 Series IC's' that we have in stock.

If you are an electronics buyer in India, reach out to us for hard-to-find parts. We can help with importing if necessary and support both retail and bulk orders. Explore related items like Nextion Display, Power Supply, Diode, HMI Display, Crystal, and Super Capacitor. Contact Us.

Features of 74LS86 Quad 2 Input Exclusive OR Gate DIP IC

• Quad 2-input XOR gates in one package
• Low power consumption using Schottky TTL technology
• High-speed logic operation (typical propagation delay ~10ns)
• Standard 5V TTL supply voltage (4.75V to 5.25V)
• TTL-compatible input and output levels
• High noise immunity
• Input clamping diodes for reduced transmission effects
• Operating temperature range: 0°C to 70°C

Specification of 74LS86 Quad 2 Input Exclusive OR Gate DIP IC

• IC Type: Gate IC
• Gate IC Type: XOR
• Logic Function: XOR (Exclusive OR)
• Supply Voltage (V): 4.75V
• Case/Package: DIP
• No. of Pins: 14
• No. of Inputs: 2 Inputs
• Max. Output Current (A): 8mA
• Product Range: 74LS86
• Schmitt Trigger Input: Without Schmitt Trigger Input
• Max. Supply Voltage (V): 5.25V

Applications of 74LS86 Quad 2 Input Exclusive OR Gate DIP IC

• Parity generation and checking
• Data comparison and logic operations
• Arithmetic circuits
• Pulse shaping and timing circuits
• Digital communication systems

Package Includes

• 1 X 74LS86 Quad 2 Input Exclusive OR Gate DIP IC
