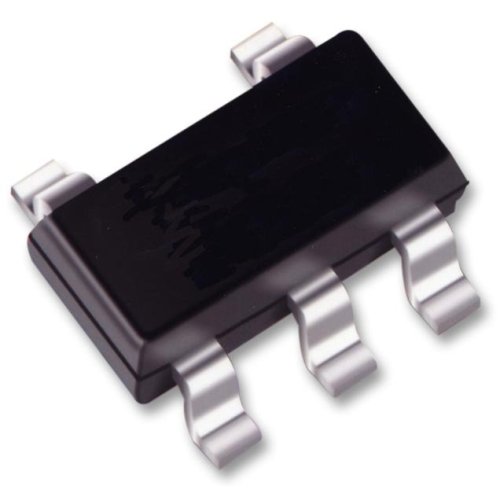

74LVC1G14GV SMD IC

74LVC1G14GV single Schmitt trigger Inverter IC

The 74LVC1G14GV is a single Schmitt-trigger Inverter provides the inverting buffer function with Schmitt-trigger input. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. The input can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment. Schmitt-trigger action at the input makes the circuit tolerant for slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

DNA solutions, Nashik has various types of 7400 Series IC's. Check out our complete collection of 7400 Series IC.

• High noise immunity


• Complies with JEDEC standard - JESD8-7, JESD8-5 and JESD8-B/JESD36


• ±24mA Output drive (VCC = 3V)


• CMOS low power consumption


• Latch-up performance exceeds 250mA


• Direct interface with TTL levels


• Unlimited rise and fall times


• Inputs accept voltages up to 5V


• ESD protection - HBM JESD22-A114F exceeds 2000V, MM JESD22-A115-A exceeds 200V


Package Includes

1 x 74LVC1G14GV SMD IC
