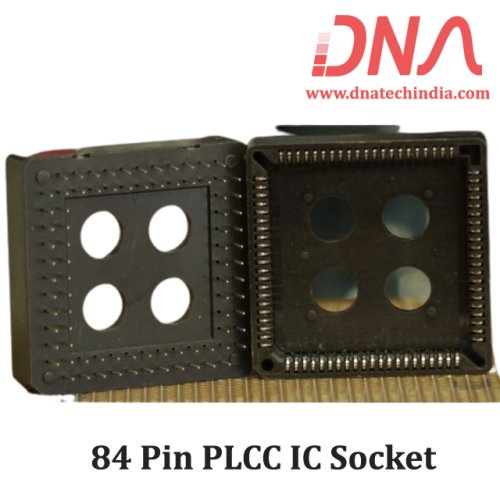

84 Pin PLCC IC Socket
*Images are shown only for references
84 Pin PLCC IC Socket

Description

84 Pin PLCC IC Socket

Using IC sockets is advisable on boards with point to point wiring because replacing a defective IC is time consuming and can possibly damage your prototype board.

The use of an IC socket is inexpensive compared to the time and effort required to replace an IC chip. IC sockets also reduce the possibility of damaging the board when swapping out IC's

We have Various sizes of PLCC IC Socket. Check out our complete collection of PLCC IC Socket.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 84 Pin PLCC IC Socket

  • Tin Plated Contacts and Connectors

  • Current Rating 1A

  • Fits Standard .100" Grid

  • Suitable for standard PLCC ICs

  • RoHS Compliant

  • Number of Contacts : 84

  • Body Orientation : Straight

  • Contact Material : Phosphor Bronze

  • Pitch : 1.27mm

  • Contact Plating : Tin over Nickel

  • Mounting Type : Through Hole

  • Termination Method : Solder

  • Current Rating : 1A

  • Voltage Rating : 100 V ac

  • Housing Material : PBT

  • Height : 8mm

  • Maximum Operating Temperature : +105°C

  • Minimum Operating Temperature : -40°C

84 Pin PLCC IC Socket

3.5

See 2 Ratings & Reviews |

Stock: 4
Generic
SKU: DAA656

₹ 43.66  (inc GST)
