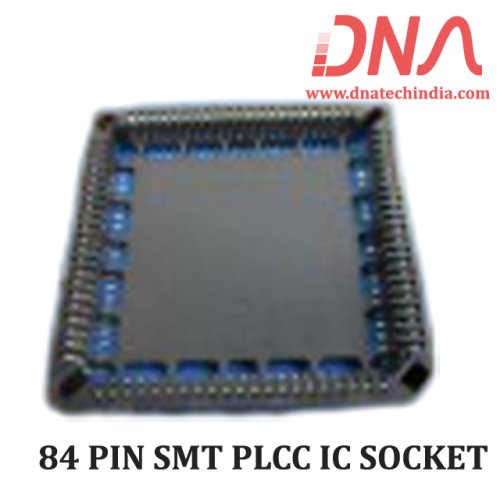

This is a IC Socket/Base for 84 pin SMD PLCC IC.
This is a SMT base and is advisable on boards with point to point wiring because replacing a defective IC is time consuming and can possibly damage your prototype board. The use of an IC socket is inexpensive compared to the time and effort required to replace an IC chip. IC sockets also reduce the possibility of damaging the board when swapping out IC's.
We have Various sizes of PLCC IC Socket. Check out our complete collection of PLCC IC Socket.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Connector Type : PLCC Socket
No. of Contacts : 84Contacts
Pitch Spacing : 1.27mm
Contact Plating : Tin Plated Contacts
Mounting Style : Surface Mount
Termination Method : Solder
Material : Plastic
Color : Brown
Shape : Square
Outer : 35.00mm x 35.00mm (1.40" x 1.40")
Inner : 29.0mm x 29.0mm (1.16" x 1.16")
Height Above Board : 4.54mm (0.18")
See 1 Ratings & Reviews |
