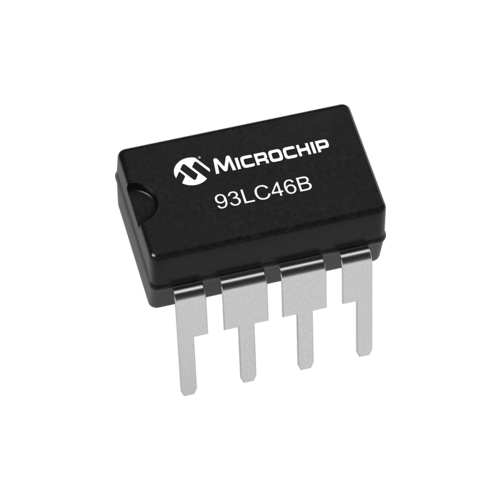

The Microchip Technology Inc. 93XX46A/B/C devices are 1Kbit low-voltage serial Electrically Erasable PROMs (EEPROM).
Word-selectable devices such as the 93AA46C, 93LC46C or 93C46C are dependent upon external logic levels driving the ORG pin to set word size. For dedicated 8-bit communication, the 93AA46A, 93LC46A or 93C46A devices are available, while the 93AA46B, 93LC46B and 93C46B devices provide dedicated 16-bit communication. Advanced CMOS technology makes these devices ideal for low power, nonvolatile memory applications. The entire 93XX Series is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, 6-lead SOT-23, 8-lead 2x3 DFN and 8-lead TSSOP. All packages are Pb-free (Matte Tin) finish.
Low-Power CMOS Technology
ORG Pin to Select Word Size for ‘46C’ Version
128 x 8-bit Organization ‘A’ Devices (no ORG)
64 x 16-bit Organization ‘B’ Devices (no ORG)
Self-Timed Erase/Write Cycles (includingAuto-Erase)
Automatic Erase All (ERAL) Before Write All(WRAL)
Power-On/Off Data Protection Circuitry
Industry Standard 3-Wire Serial I/O
Device Status Signal (Ready/Busy)
Sequential Read Function
1,000,000 Erase/Write Cycles
Data Retention > 200 Years
Density : 1K bits (x16)
Op. Volt Range (V) : 2.5 to 5.5
Max. Clock Freq. : 2 MHz
Page Size (bytes) : 16
Temp Range (°C) : -40°C to +125°C
Endurance : 1,000,000
