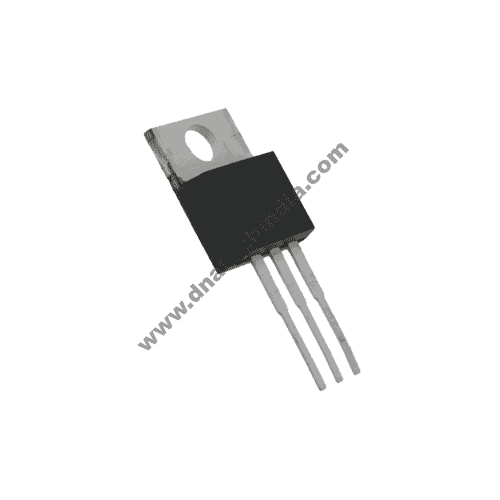

BTA12-600 Triac

Available either in through-hole or surface-mount packages, the BTA/BTB12 and T12 triac series is suitable for general purpose AC switching.

They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers. The snubberless versions (BTA/BTB...W and T12 series) are specially recommended for use on inductive loads, thanks to their high commutation performances. Logic level versions are designed to interface directly with low power drivers such as microcontrollers.

Features of BTA12

• Blocking Voltage to 600 V

• On-State Current Rating of 12 A RMS at 25°C

• Uniform Gate Trigger Currents in Three Quadrants

• High Immunity to dV/dt − 2000 V/s minimum at 125°C

• Minimizes Snubber Networks for Protection

• Industry Standard TO-220AB Package

• High Commutating dI/dt − 2.5 A/ms minimum at 125°C

• Internally Isolated (2500 VRMS)

• These Devices are Pb−Free and are RoHS Compliant
