DIP switch 4 Way

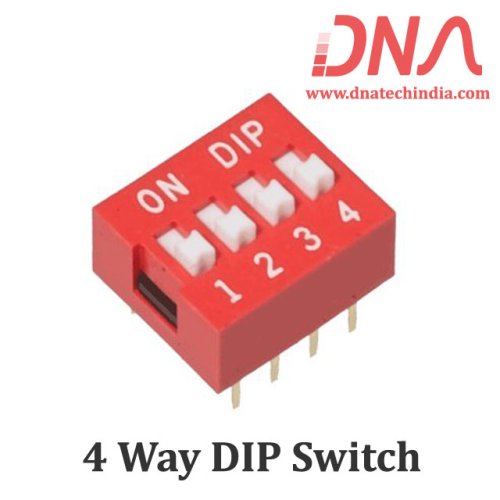

4 Way DIP Switch

This is a slide type 4 way DIP switch which can easily be mounted on a PCB. A DIP switch is basically a set of switches in one single package. This DIP switch has 4 switches on it and in all 8 pins. this DIP switch has the same footprint of a 8 pin DIP IC, so it can easily be mounted on a general purpose PCB, breadboards as well.

We have various types of Switches & Keypad. Check our complete collection of PCB Mount Switches.

Features of 4 Way DIP Switch

• Number of Pins: 4
• No of Position: 2
• Pin Spacing: 2.54 mm

• Pin Type: DIP, PCB Mounted
• Switch Type: Slide Type, SPST
• Color: Red & White

Specifications of 4 Way DIP Switch

• Max Operating Voltage: 50 Volts DC
• Max Current Capacity: 100ma DC
• Max Switching: 0.8 watt
• Contact Resistance <100mohm
• Life Expectancy: 1000 operations
• Operating Temperature: -20 to 80C

Package Includes

1 x DIP switch 4 Way
