DIP switch 8 Way

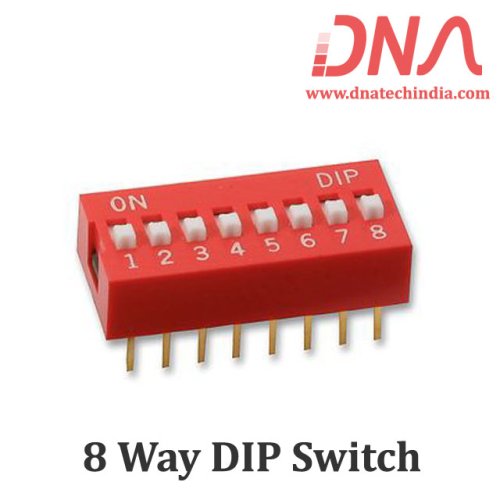

8 Way DIP Switch

This is a slide type 8 way DIP switch which can easily be mounted on a PCB. A DIP switch is basically a set of switches in one single package. This DIP switch has 8 switches on it and in all 16 pins, it can easily be mounted on a general purpose PCB, breadboards as well.

We have various types of Switches & Keypad. Check our complete collection of PCB Mount Switches.

Features of 8 Way DIP Switch

• Number of Pins: 8
• No of Position: 2
• Pin Spacing: 2.54 mm

• Pin Type: DIP, PCB Mounted
• Switch Type: Slide Type, SPST
• Color: Red & White

Specifications of 8 Way DIP Switch

• Max Operating Voltage: 50 Volts DC

• Max Current Capacity: 100ma DC

• Max Switching: 0.8 watt

• Contact Resistance <100mohm

• Life Expectancy: 1000 operations

• Operating Temperature: -20 to 80C

Package Includes

1 x DIP switch 8 Way
