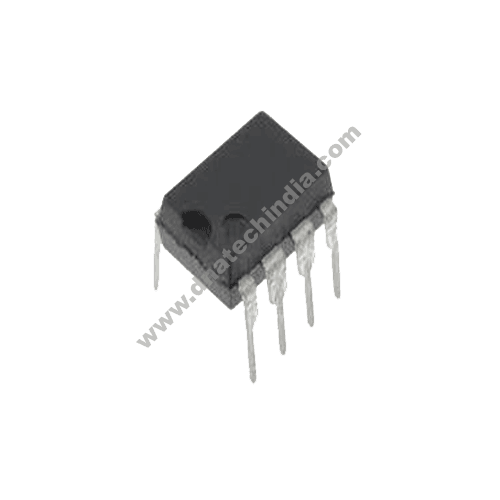

The LM567/NE567/SE567 is general purpose tone decoders designed to provide a saturated transistor switch to ground when an input signal is present within the pass band.
The circuit consists of an I and Q detector driven by a voltage controlled oscillator which determines the center frequency of the decoder. External components are used to independently set center frequency, bandwidth and output delay.
See 0 Ratings & Reviews |
The LM567/NE567/SE567 is general purpose tone decoders designed to provide a saturated transistor switch to ground when an input signal is present within the pass band.
The circuit consists of an I and Q detector driven by a voltage controlled oscillator which determines the center frequency of the decoder. External components are used to independently set center frequency, bandwidth and output delay.
