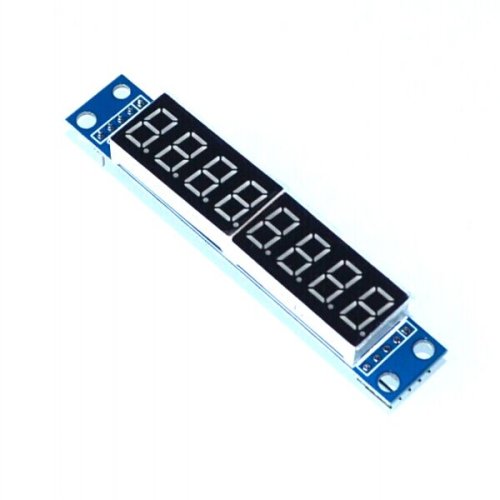

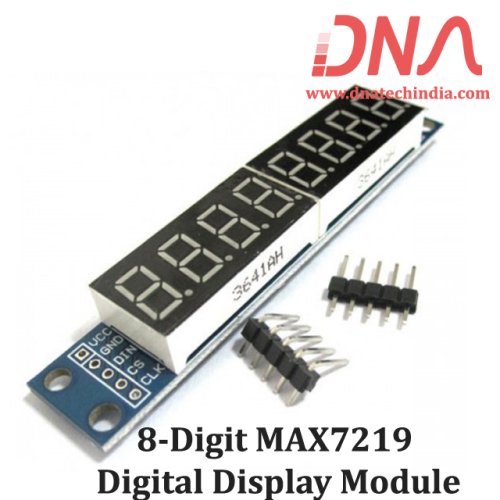

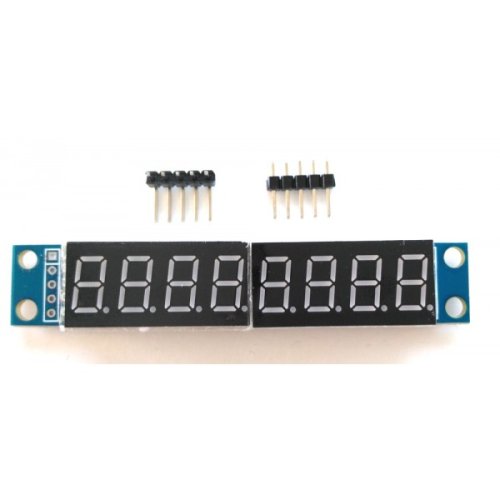

This 8 digit seven segment display module is based upon the Maxim MAX7219 LED display driver.
The module uses two standard 4 digit seven segment displays to display a total of 8 digits in RED with decimal point. A convenient input and output header allows additional modules to be daisy-chained and controlled with just just 3 digital IO pins.
The Maxim MAX7219 driver allows for each segment of up to 8 digits (with decimal point) to be controlled individually from a serial interface. An 8x8 static ram area stores each digit and multiplexing the display is handled automatically.
We have Various sizes of Modules. Check out our complete collection of Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
