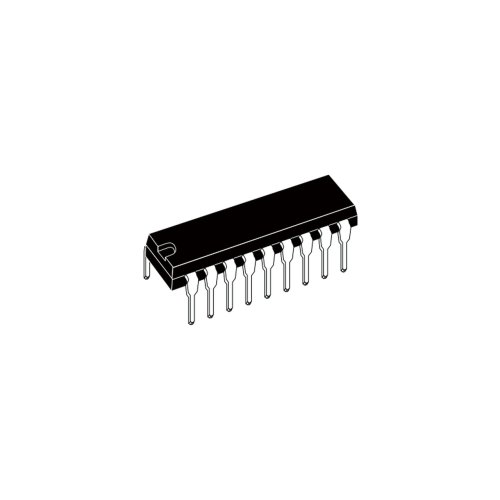

MT8870 DTMF RECEIVER

MT8870 DTMF Decoder

The MT8870D/MT8870D-1 is a complete DTMF receiver integrating both the band split filter and digital decoder functions. The filter section uses switched capacitor techniques for high and low group filters; the decoder uses digital counting techniques to detect and decode all 16 DTMF tone pairs into a 4-bit code. External component count is minimized by on chip provision of a differential input amplifier, clock oscillator and latched three-state bus interface.

Features of MT8870

• Complete DTMF Receiver

• Low power consumption

• Internal gain setting amplifier

• Adjustable guard time

• Central office quality

• Power-down mode

• Inhibit mode

• Backward compatible with MT8870C/MT8870C-1

Applications of MT8870

• Receiver system for British Telecom (BT) or CEPT Spec (MT8870D-1)

• Paging systems

• Repeater systems/mobile radio

• Credit card systems

• Remote control

• Personal computers
