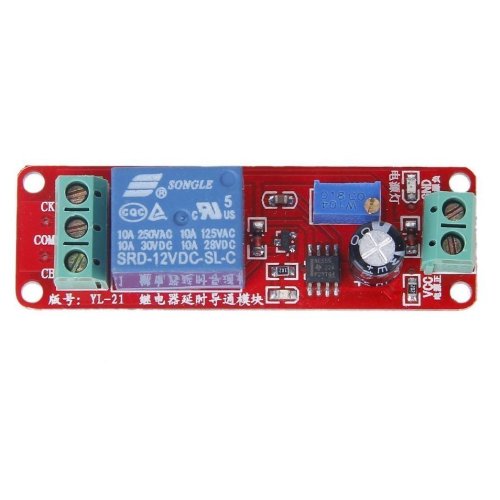

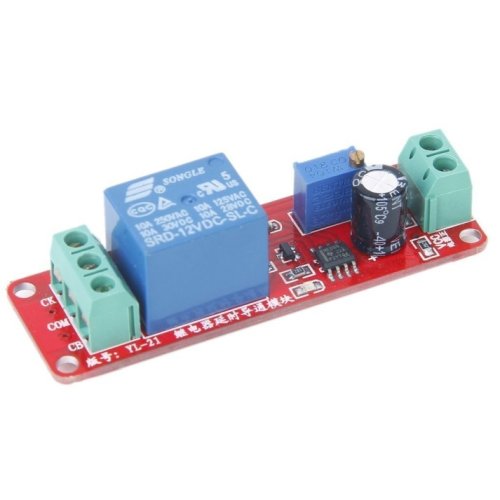

NE555 Delay Timer Switch Module

This item is a time delay switch module, based on NE555 IC, high-performance timing CPU design.

The power indicator LED and switch trigger timing indication LEDs. Timing from microseconds to long hours. Applicable to vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices.

Specifications

• Module Properties : NE555 chip

• Input voltage : DC 12 Volts

• Adjustable time : Within 10 seconds

• Dimension : 77 (L) * 23 (W) * 18 (H) mm (with potentiometer)

• Control voltage : AC 0~250V / max. 10A, DC 0~30V / max. 10A

• Max. loading : 2200W

Application

Vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices.

Features

• Main Chip (NE555) Characteristics:

• Timing from microseconds to long hours

• Simple circuit design

• Precision Pulse Generation / Timing,

• Adjustable Duty Cycle

• Monostable Operation

• Countless Application and Information Sources

Package included

• 1 x 12V NE555 Oscillator Delay Timer Switch Module Adjustable 0-10 Second
