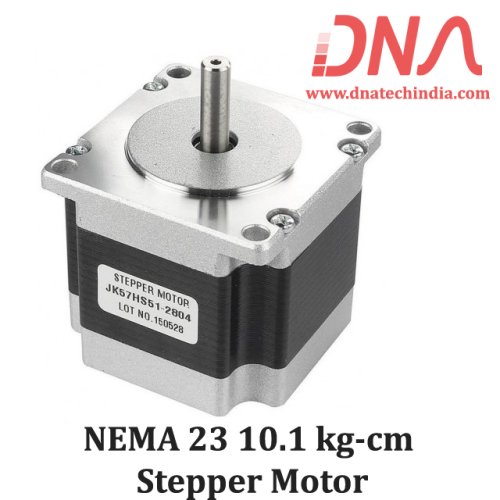

NEMA 23 10.1 kg-cm Stepper Motor

They are the special choice for heavy duty CNC machines.

They overpass the NEMA 17 Stepper Motors because of their inherent operational advantages including comparably high torque at high speeds. This NEMA 23 Stepper Motor is a powerhouse when it comes to larger machines that require extra torque. The NEMA 23 10.1 kg-cm Hybrid Stepper Motor can provide 10.1 kg-cm of torque at 2.8 Ampere current per phase.

The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA 23 10.1 kg-cm Hybrid Stepper Motor provides excellent response to starting, stopping and reversing pulses from stepper motor driver.

One can equip them on CNC Milling, CNC Router like application which demands extra torque than provided by NEMA17 Stepper Motors.

It is a brushless DC motor, so the life of this motor is dependent upon life of the bearings. The position control is achieved by a simple Open Loop control mechanism so doesn’t require complex electronic control circuitry.

The motor’s shaft has been machined for good grip with a pulley, drive gear etc. and especially avoiding stall or slip.

We have Various sizes of Stepper Motors.Check out our complete collection of Stepper Motors

Features of NEMA 23 10.1 kg-cm Hybrid Stepper Motor

• Comparably more powerful than NEMA17 motors.

• Input pulse decides the rotation angle of the motor.

• High accuracy of around 3 to 5% a step.

• Provides good starting, stopping and reversing.

• Control of this motor is less costly because of exclusion of complex control circuitry.

• The speed is proportional to the frequency of the input pulses.

Specifications NEMA 23 10.1 kg-cm Hybrid Stepper Motor

• Step Angle : 1.8°

• Holding Torque : 10.1 kg-cm

• Motor Serial Number : JK57hs51-2804

• Operating Voltage : 2.3 Volts

• Supply Current (A) : 2.8 Ampere/Phase

• No. of Leads : 4

• Inductance : 2.2 mH/Phase

• Resistance : 0.83 Ohm

• Rotor Inertia : 275 gm-cm2

• Weight (gm) : 650

• Detent Torque (kg-cm) : 0.36

• Frame Size (mm) : 57 x 57

• Inductance Accuracy : ±20%

• Resistance Accuracy : ±10%

• Shaft Diameter (mm) : 6.35

• Shaft Length (mm) : 20.6

• Step Angle Accuracy : ±5%

Checkout our collection of various types of NEMA17, NEMA23 & NEMA34 Stepper motors.
