PC817 OPTOCOUPLER

PC817 OPTOCOUPLER/Photocoupler

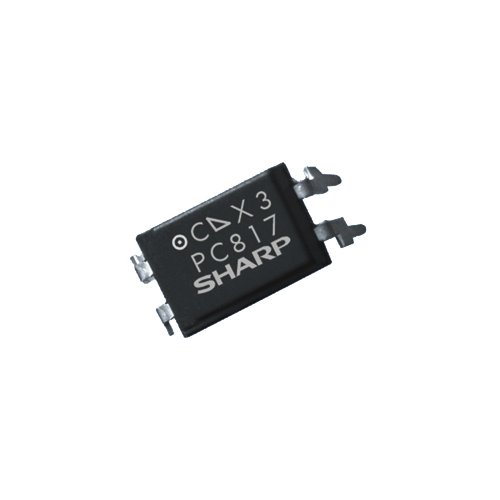

PC817 is a 4pin DIP General Purpose Photocoupler/Optocoupler. PC817 contains an IRED optically coupled to a phototransistor.It is packaged in a 4pin DIP. Input-output isolation voltage(rms) is 5.0kV. Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA.

Features of PC817 Optocoupler

• 4 pin DIP package

• Double transfer mold package (Ideal for Flow Soldering)

• High collector-emitter voltage (VCEO:80V)

• Current transfer ratio (CTR : MIN. 50% at IF=5 mA,VCE=5V)

• Several CTR ranks available

• High isolation voltage between input and output(Viso(rms) : 5.0 kV)

• Lead-free and RoHS directive compliant

Application of PC817 Photocoupler

• Computer terminals

• System appliances, measuring instruments

• Registers, copiers, automatic vending machines

• Electric home appliances, such as fan, heaters, etc.

• Medical instruments, physical and chemical equipment

• Signal transmission between circuits of different potentials and impedances
