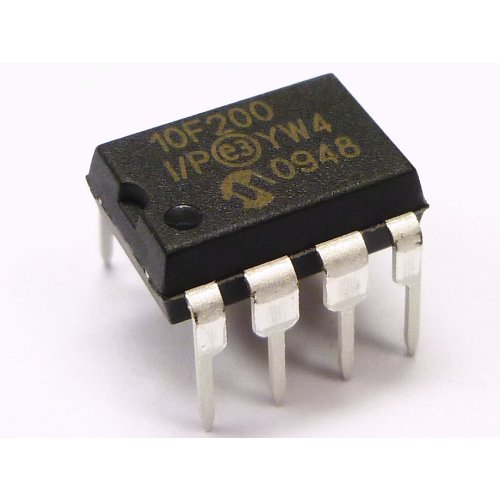

PIC10f200 Microcontroller

The PIC10F200 is a low-cost, high-performance, 8-bit, fully static, Flash-based CMOS microcontroller.

It employs a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are single cycle (1 µs) except for program branches, which take two cycles. It delivers performance in an order of magnitude higher than competitors in the same price category. The easy-to-use and easy to remember instruction set reduces development time significantly.

Features of PIC10f200 Microcontroller

• Precision 4 MHz internal oscillator

• Baseline Core with 33 Instructions, 2 Stack Levels

• All single - cycle Instructions except for program branches which are two cycles

• 12 - bit wide instructions

• 8 - bit wide data path

• 25 mA source/sink current I/O

• Low power (100nA) sleep current

• One 8-bit timer (TMR0)

• Watchdog timer (WDT)

• In Circuit Serial Programming™ (ICSP™) capability

• In - Circuit debugging support

• Programmable code protection
