SL100 NPN Transistor

SL100/SK100 NPN SILICON RF POWER TRANSISTOR

SL100/SK100 is a NPN medium power transistor. It can be used in applications where BC547 is found inadequate.

Features of SL100/SK100

• Polarity : NPN

• Maximum collector power dissipation 0.8 watt

• Maximum collector-base voltage 60 volts

• Maximum collector-emitter voltage 50 volts

• Maximum emitter-base voltage 5 volts

• Maximum collector current 0.5 Ampere

• Maximum Temperature(Tj), : 200°C

• Collector capacitance (Cc) : 20pF

• Forward current transfer ratio (hFE), min : 40

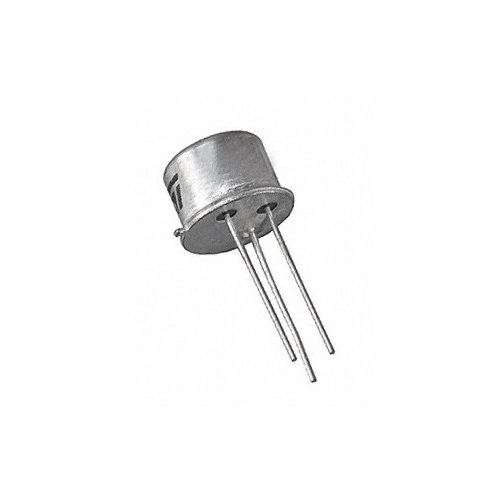

• Package of SL100 transistor : TO-39
