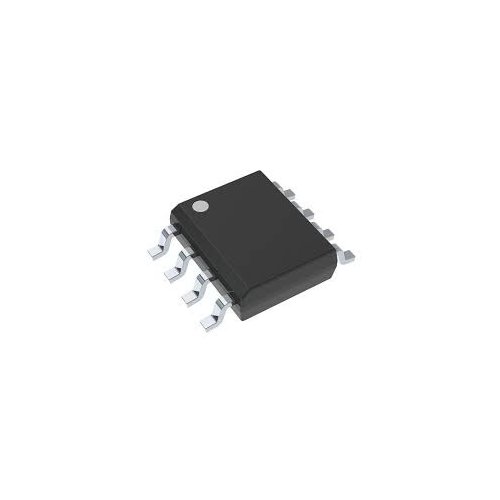

Texas Instruments SN65HVD230DR CAN Transceiver IC

SN65HVD230DR IC for 3.3V CAN Bus with protection features and 1 Mbps data rate.

The Texas Instruments SN65HVD230DR CAN Transceiver IC is built to meet the ISO 11898-2 High Speed CAN Physical Layer standard. It operates on a single 3.3V supply and supports data rates up to 1 Mbps. This IC is ideal for applications in industrial automation, building control, and automotive systems. It features robust protection mechanisms including cross wire, overvoltage, and thermal shutdown, ensuring reliability in harsh environments.

Designed for seamless integration with Texas Instruments microcontrollers, the SN65HVD230DR supports up to 120 nodes on a bus and provides adjustable driver transition times for improved emissions performance. Its low current standby and sleep modes enhance energy efficiency, making it suitable for various applications like motor control and HVAC systems.

Choose the Texas Instruments SN65HVD230DR for reliable communication in CAN bus networks. With its advanced features and robust design, it meets the demands of modern industrial and automotive applications, ensuring efficient data transmission and network robustness.

Explore the range of MISC ANALOG IC's at DNA. The Texas Instruments brand offers reliable solutions for your electronic needs. Check other MISC ANALOG IC's that we have in stock.

If you are searching for specific electronic components, let us help you. At DNA, we can assist in importing items that you can't find. We support both retail and bulk orders. Check out our range including Programmer, LCD, Power Supply, Sensor, Resistor, and IGBT. Contact Us

Features of Texas Instruments SN65HVD230DR CAN Transceiver IC

• Operates with a single 3.3 V Supply
• Compatible With ISO 11898-2 Standard
• Bus Pin ESD Protection Exceeds ±16 kV HBM
• High Input Impedance Allows for Up to 120 Nodes on a Bus
• Low Current Standby Mode: 370 μA Typical
• Adjustable Driver Transition Times for Improved Emissions Performance

Specification of Texas Instruments SN65HVD230DR CAN Transceiver IC

• Data Rate up to 1 Mbps
• Thermal Shutdown Protection
• Open Circuit Fail-Safe Design
• Common Mode Range: -2 V to 7 V

Applications of Texas Instruments SN65HVD230DR CAN Transceiver IC

• Industrial Automation
• Motor Control
• Building and Climate Control
• Sensors and Drive Systems
• CAN Bus Standards

Package Includes

• 1 X Texas Instruments SN65HVD230DR CAN Transceiver IC
