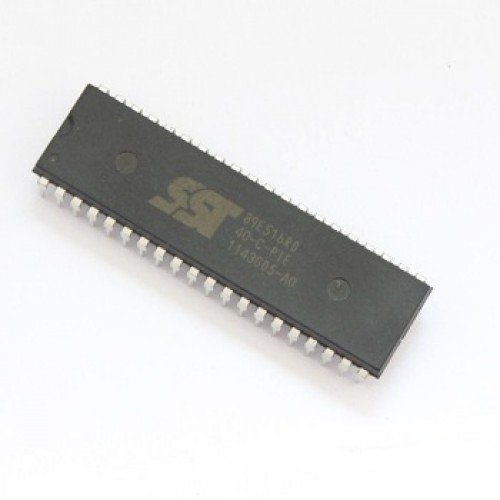

SST89E516RD

Microchip's SST89E516RD is a 8051 based Microcontroller which uses the 8051 instruction set and is pin-for-pin compatible with standard 8051 microcontroller devices like 89S51, 89S52. It is equivalent to NXP's 89V51RD2.

The main advantage of using SST89E516 is it has a inbuilt bootloader and it can be serially programmed through PC using EASY IAP Software. Click here To download free software.

SST89E516 is perfect for students & Hobbyist who do not want to spend amount buying programmers.

Features of SST89E516RD

• 8-bit 8051-Compatible Microcontroller (MCU)with Embedded SuperFlash Memory– Fully Software Compatible– Development Toolset Compatible– Pin-For-Pin Package Compatible

• SST89E516RD2 Operation– 0 to 40 MHz at 5V

• SST89V516RD2 Operation– 0 to 33 MHz at 3V

• 1 KByte Internal RAM

• Dual Block SuperFlash EEPROM– 64 KByte primary block +8 KByte secondary block(128-Byte sector size for both blocks)– Individual Block Security Lock with SoftLock– Concurrent Operation duringIn-Application Programming (IAP)– Memory Overlay for Interrupt Support during IAP

• Support External Address Range up to 64KByte of Program and Data Memory

• Three High-Current Drive Ports (16 mA each)

• Three 16-bit Timers/Counters

• Full-Duplex, Enhanced UART– Framing Error Detection– Automatic Address Recognition

• Ten Interrupt Sources at 4 Priority Levels– Four External Interrupt Inputs

• Programmable Watchdog Timer (WDT)

• Programmable Counter Array (PCA)

• Four 8-bit I/O Ports (32 I/O Pins) andOne 4-bit Port

• Second DPTR register

• Low EMI Mode (Inhibit ALE)

• SPI Serial Interface

• Standard 12 Clocks per cycle, the device has anoption to double the speed to 6 clocks per cycle.

• TTL- and CMOS-Compatible Logic Levels

• Brown-out Detection

• Low Power Modes– Power-down Mode with External Interrupt Wake-up– Idle Mode

• Temperature Ranges:– Commercial (0°C to +70°C)– Industrial (-40°C to +85°C)

• Packages Available– 40-contact WQFN (Port 4 feature not available)– 44-lead PLCC– 40-pin PDIP (Port 4 feature not available)– 44-lead TQFP

• All non-Pb (lead-free) devices are RoHS compliant
